Lilin IMEGAPRO IPD2122ES Bedienungsanleitung

LR2122E

LD2122E

D/N 1080P HD Dome IR IP Camera

1080P HD Dome IP Camera

Quick Installation Guide

IPR2122ES

IPD2122ES

D/N 1080P HD Dome IR IP Camera

D/N 1080P HD Dome IP Camera

CAUTION

 Do not drop or strike this equipment

 Do not install the equipment near any naked flames or heat

sources

 Do not expose this unit to rain, moisture, smoke or dust

environment

 Do not cover the opening of the cabinet with cloth and

plastic or to install this unit in poor ventilated places. Allow

10cm between this unit and its surroundings

 Do not continue to operate the unit under abnormal

conditions such as detection of smoke, strange smell or no

display on screen while power is turned on

 Do not touch the power connection with wet hands

 Do not damage the power cord or leave it under pressure

 Do not operate this unit near magnet, speaker system, etc., to

avoid unnecessary magnetic interference

 onnection cables should be grounded properly

Product Overview

(IR IP amera)

(IP amera)

English

Unit: mm

- 1 -

① RJ-45 Network able (Support PoE)

② D 12V Power Input Jack (D 12V±10%)

③ Base

④ Fix Ring

⑤ Inside over

⑥ Dome over

⑦ Lens

⑧ Reset Key

Restores server back to factory default setting.

⑨ Network Indicator LEDs

Green (LINK): Network connection. LED remains lit while

connection is in place.

Orange (A T): Data communications. This LED should continue

to blink.

Installation

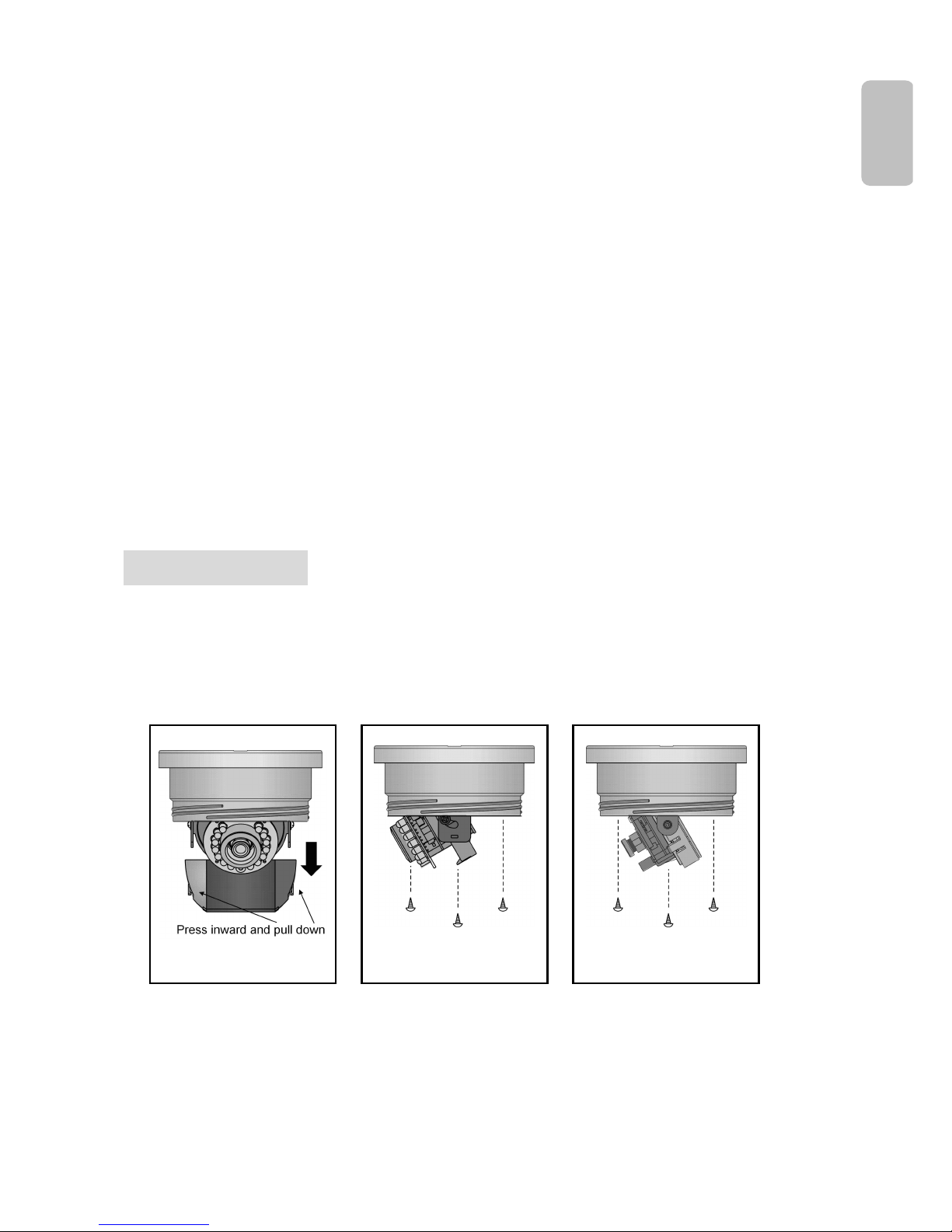

1. Disassemble the inside cover (FIG.1, IR IP amera), and then put

the provided screws (M3.0 x 25, wooden screw) through the holes

marked as "a", and fix the base in the desired area (FIG.2, FIG.3 &

FIG.4).

FIG.1

FIG.2

FIG.3

(IR IP amera)

(IP amera)

English

- 2 -

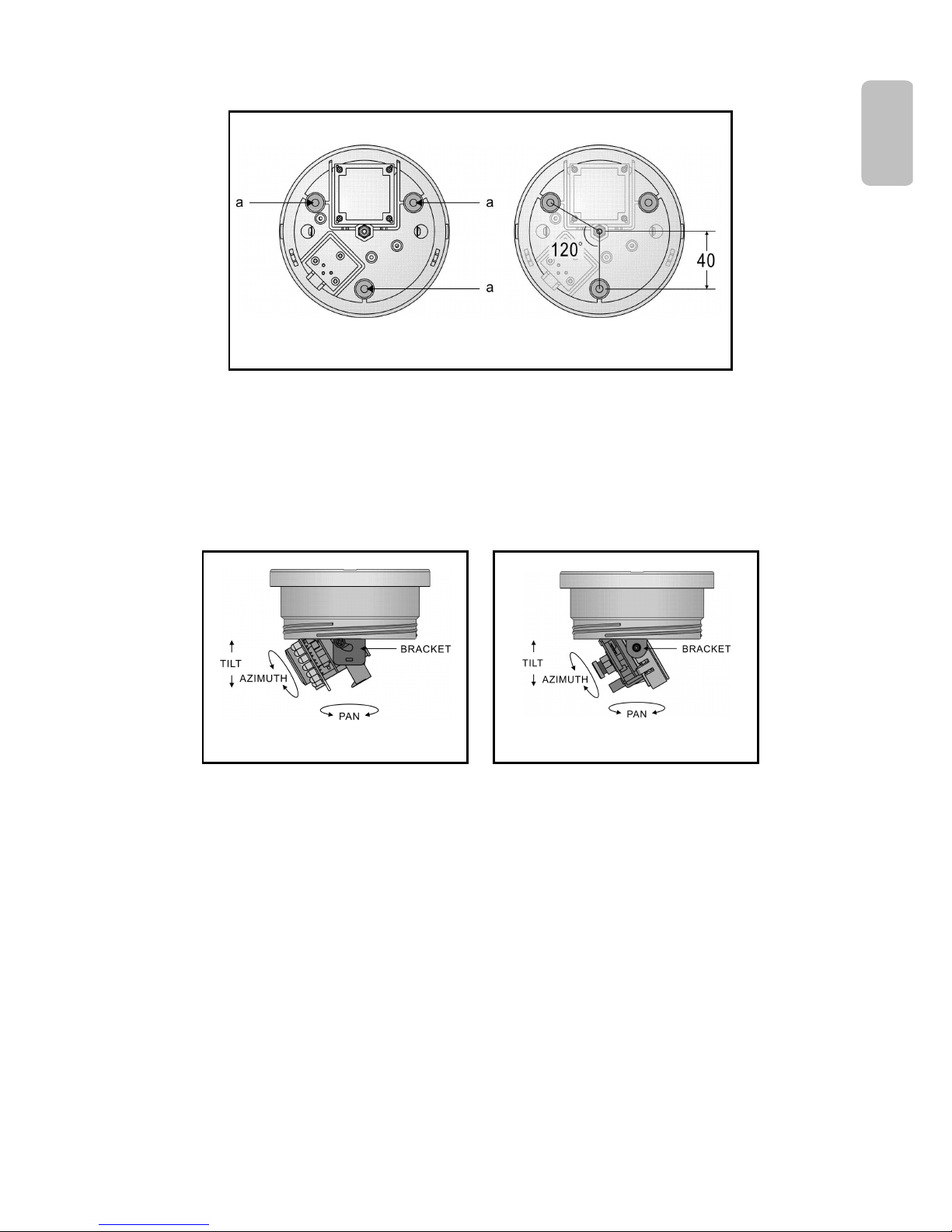

2. The direction of the lens is adjustable through the adjustable

Pan/Tilt brackets and rotatable round bracket for Azimuth. The

lens can be adjusted easily by hand without using screw driver.

Please refer to FIG.5 & FIG.6.

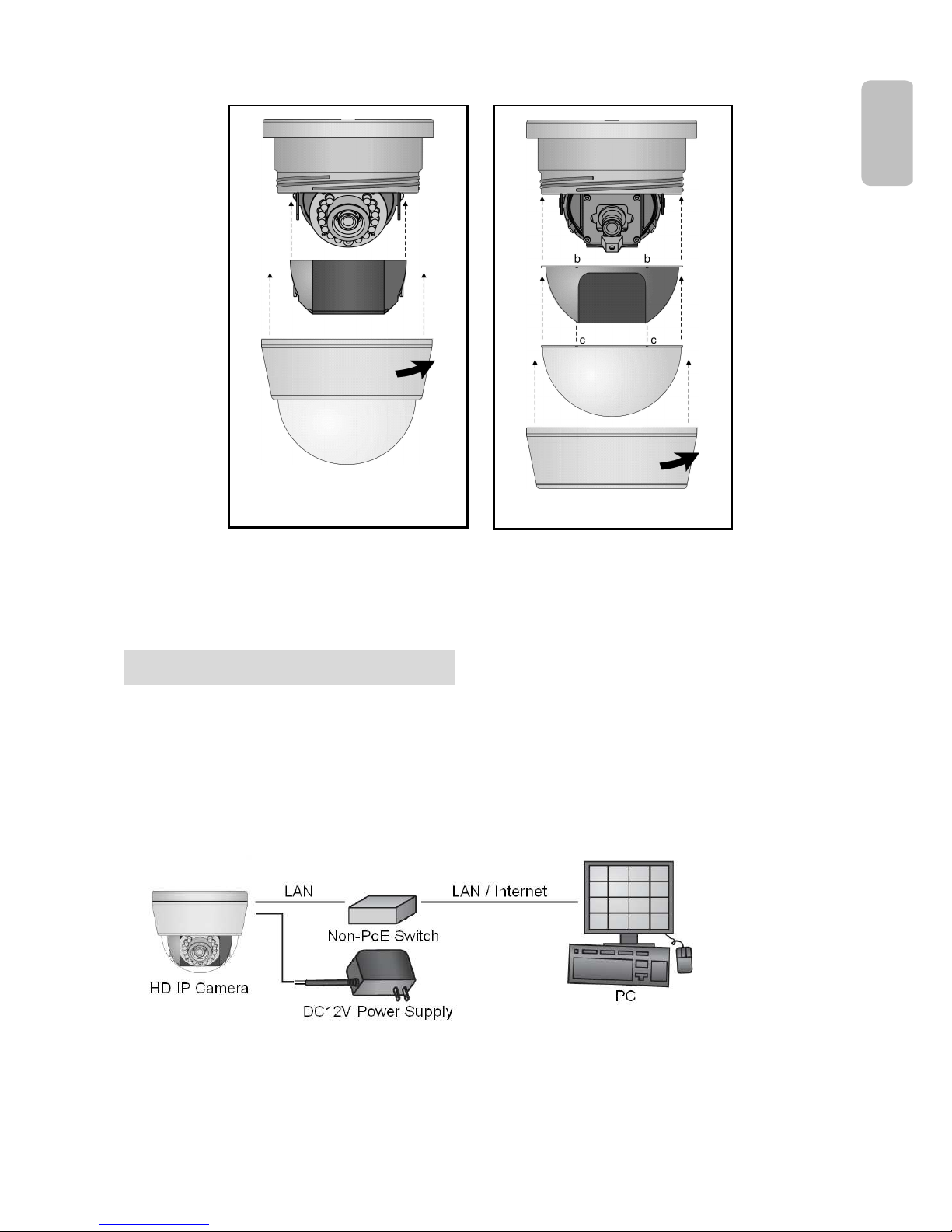

Install the inside cover first. Then insert the dome cover into the

fix ring. Tighten the fix ring into the base, while holding the dome

cover. So that the dome cover not rotate with the fix ring (FIG.7,

IR IP amera). Put on the inside cover first, and followed by put

on the dome cover. Make sure joints “b” connected to “c.” Then

tighten the fix ring (FIG.8, IP amera).

FIG.4

FIG.5

FIG.6

(IR IP amera)

(IP amera)

English

- 3 -

System Architectures

For connecting HD IP cameras to the network, please follow one of

the system architectures:

(1). Use a D 12V power adapter and a network switch to connect to

the network.

FIG.7

FIG.8

(IR IP amera)

(IP amera)

English

- 4 -

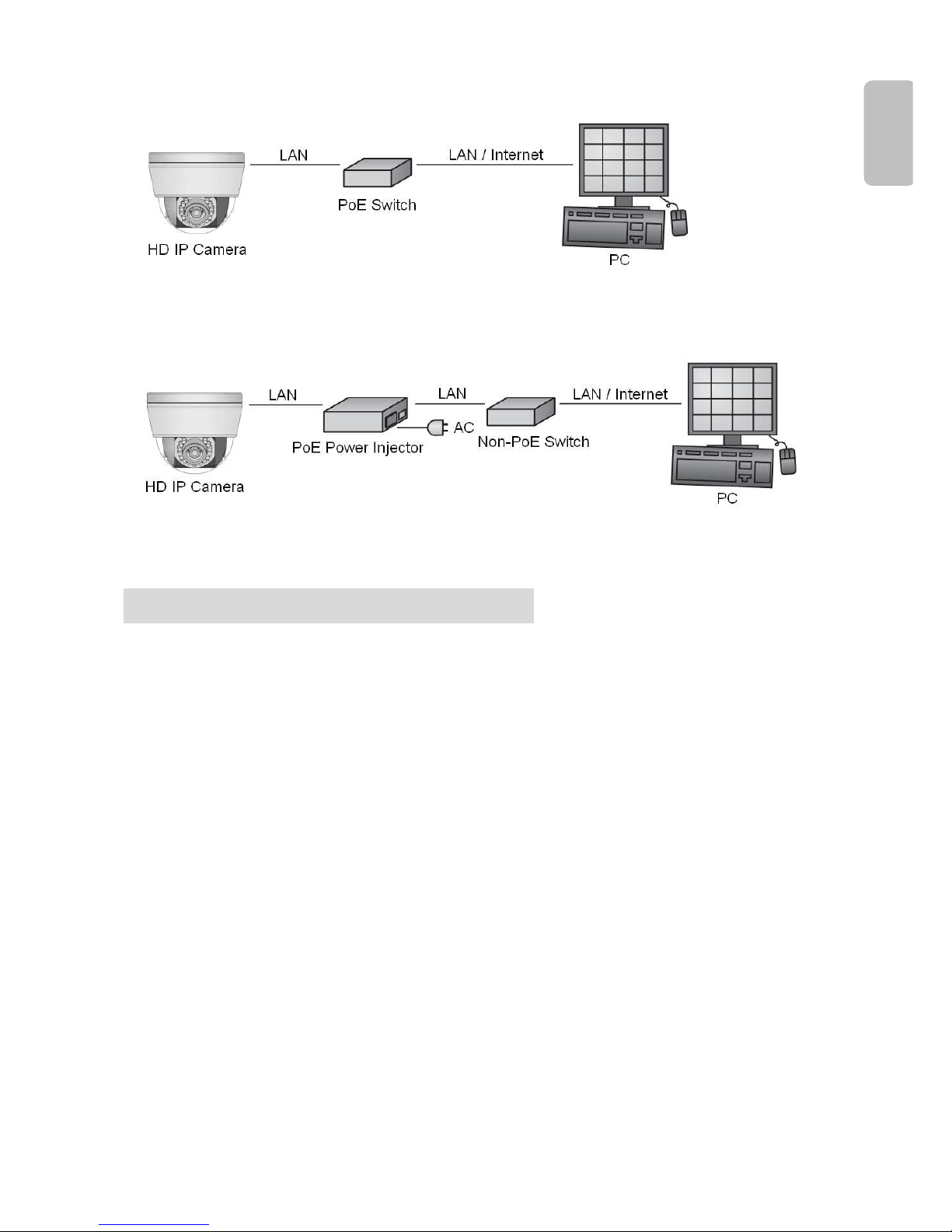

(2). Use a PoE network switch to connect to the network.

(3). Use a PoE power injector and a network switch to connect to the

network.

Emergency Factory Default

To restore factory default settings by hardware, please follow these

steps:

1. Hold “RESET Key” for 10 seconds, then release.

2. After about 40 seconds, the network LED light should turn off,

and the back on again.

3. This camera has completed the factory default settings, and can

then reboot.

4. Search for the IP device using the IPScan software.

5. Start the IP device via Internet browser.

6. Enter the default username “admin” and password “pass” to

operate.

NOTE: For user convenience, restoring the factory default settings

will revert to the default IP address 192.168.0.200.

English

- 5 -

Before Accessing IP Cameras

Before accessing the IP camera, make sure that the camera’s RJ-45

network, audio, and power cables are properly connected. To set the

IP address, consult your network administrator for an available IP

address. The default IP address for each IP camera is 192.168.0.200.

Users can use the default IP address for verifying the camera’s

network connection.

Software Requirements

Merit LILIN Universal ActiveX software components are required for

web interface display of JPEG or H.264 Full HD video. When you

dialog box will prompt the installation of the LILIN Universal ActiveX.

lick Install to download it.

Configuring IP Addresses by IPScan Software

To configure an IP address using the IP scan tool, you can copy the

IPScan software from the installation D, and paste to your

computer. Alternatively, you can execute the IPScan software from

the installation D, or download the software from the Merit LILIN

website (www.meritlilin.com). To change the settings of the IP

address, subnet mask, gateway, or HTTP port, you can follow the

steps below:

- 6 -

English

1. Run the IPScan software.

2. lick Refresh. All available devices should be listed in the

device list.

3. Select your device from the list provided.

4. hange the IP address, subnet mask, gateway, or HTTP port for

the IP camera.

5. lick Apply to submit the settings.

6. lick Refresh to verify the settings.

Configuring IP Addresses via Web Interface

To change an IP address via web interface, type the default IP

address (192.168.0.200) in the Internet browser and follow the steps

below:

1. Login to the H.264 Full HD IP camera by the default username

“admin” and default password “pass”

2. lick Basic Mode configuration hyperlink.

3. lick Network->General hyperlink.

4. hange the IP address, subnet mask, gateway, or HTTP port for

the IP camera.

5. lick ubmit to verify the settings.

English

- 7 -

Internet Browser Settings & Application Required

Make sure your Internet browser allows the signed ActiveX plug-in

to work on your computer. Set “Download Signed ActiveX plug-in

controls” to “Prompt” and “Run ActiveX control and plug-in” to

“Enable”. You can set this option via Internet Explorer-> Tools->

Options-> Security Settings.

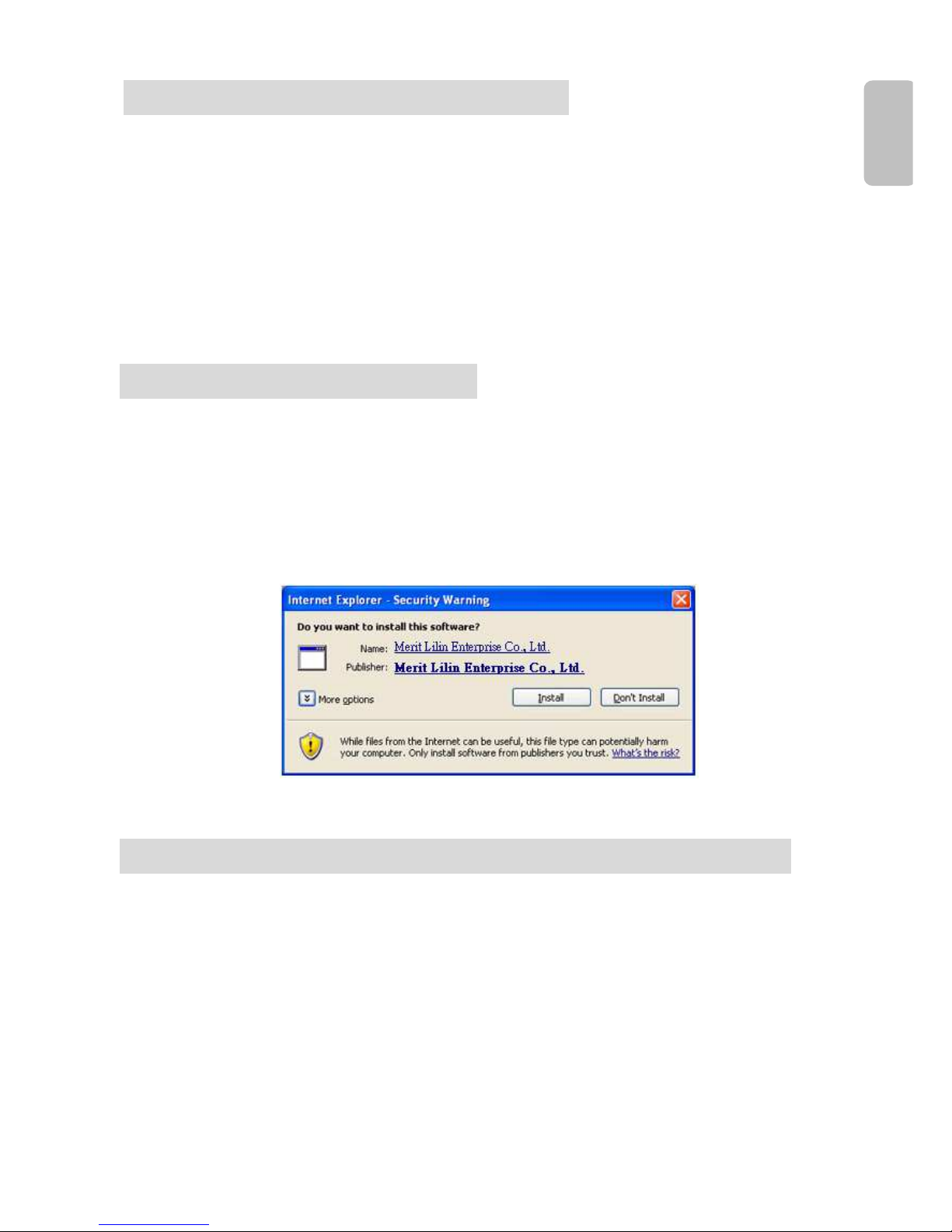

Once complete, you can access the IP camera’s live video by entering

the default IP address via your Internet browser. As the security

warning dialog box appears, click OK to download the ActiveX

directly from the IP camera.

English

- 8 -
