INSTALLATION INSTRUCTIONS FOR PART 99-6511

99-6511

APPLICATIONS

Chrysler Sebring 2007

Chrysler Town and Country 2008

Dodge Avenger 2007-2008

Dodge Dakota 2008

Dodge Grand Caravan 2008

Dodge Nitro 2007

Jeep Wrangler 2007

(Modifications to radio cavity required)

KIT FEATURES

•DIN Mount Radio Provision with Pocket

•ISO Mount Radio Provision with Pocket

A) Radio Housing with Pocket • B) ISO Brackets • C) ISO Trim Plate

KIT COMPONENTS

TOOLS REQUIRED:

Small Flat Blade Screwdriver/ Panel Removal Tool

•Phillips Screwdriver • Socket Set

1-800-221-0932

www.metraonline.com

Dash Disassembly

Chrysler Sebring 2007 . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . 1

Chrysler Town and Country 2008 . . . . . . . . . . . . . . . . .

. . . . 2,3

Dodge Avenger 2007-2008 . . . . . . . . . . . . . . . . . . . . . .

. . . . . .4

DodgeDakota2008............................

. . . . . .5

Dodge Grand Caravan 2008 . . . . . . . . . . . . . . . . . . . . . .

. . . .2,3

DodgeNitro2007 .............................

. . . . . .6

Jeep Wrangler 2007

(Modifications to radio cavity required)

. . . .7

Kit Assembly

- DIN Mount Radio Provision with Pocket ........................ 8

-ISO Mount Radio Provision with Pocket. . . . . . . . . . . . . . . . . . . . . . . . 9

Final Assembly ..........................................10

TABLE OF CONTENTS

99-6511

*Note:

Refer also to the instructions included with the aftermarket radio.

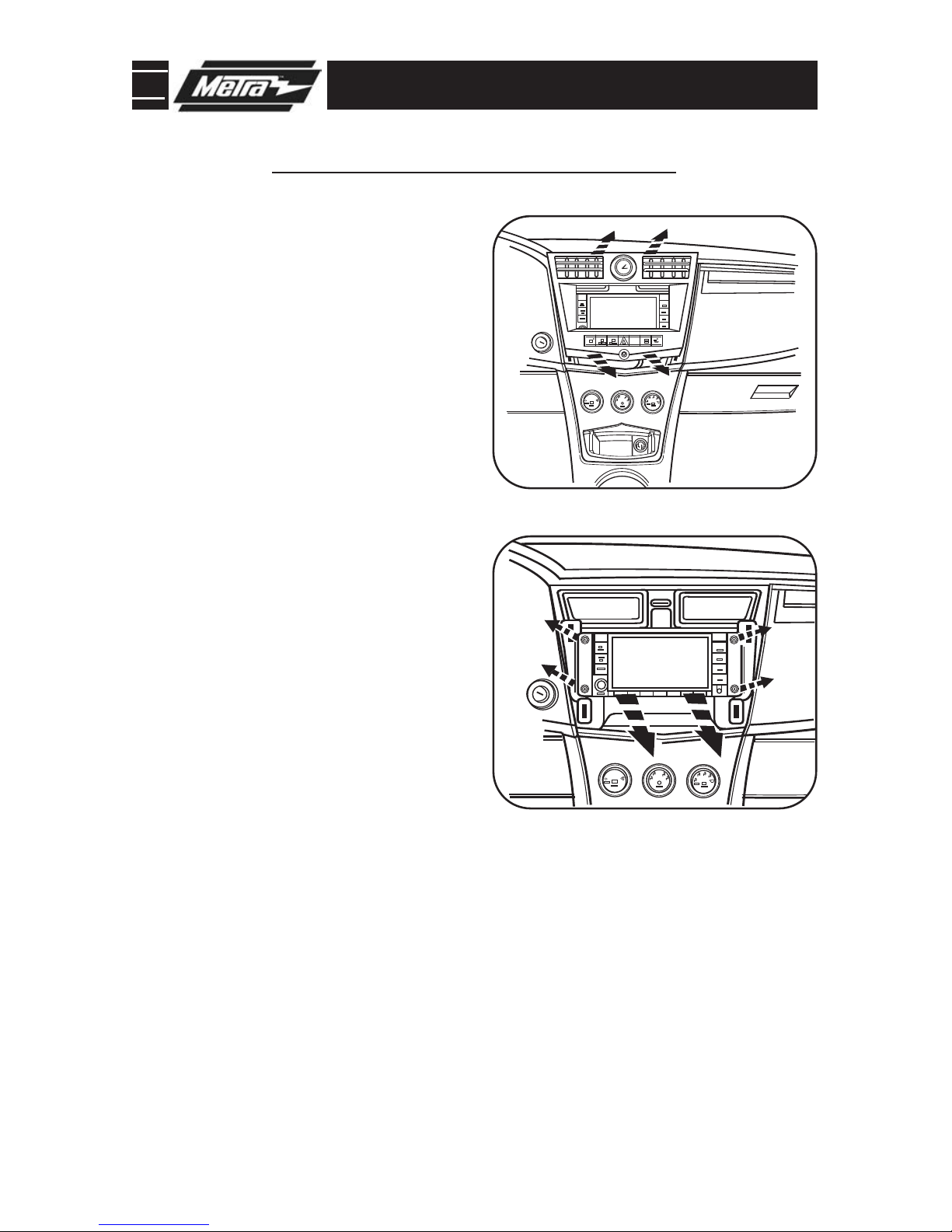

99-6511 DASH DISASSEMBLY

CHRYSLER SEBRING 2007

Remove (4) 7MM screws securing

radio. Unplug and remove radio.

(

Figure B)

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip entire panel surrounding radio

including a/c vents and clock. Unplug

and remove panel. (

Figure A)

Continue to kit assembly.

99-6511 DASH DISASSEMBLY

CHRYSLER TOWN AND COUNTRY2008

DODGE GRAND CARAVAN 2008

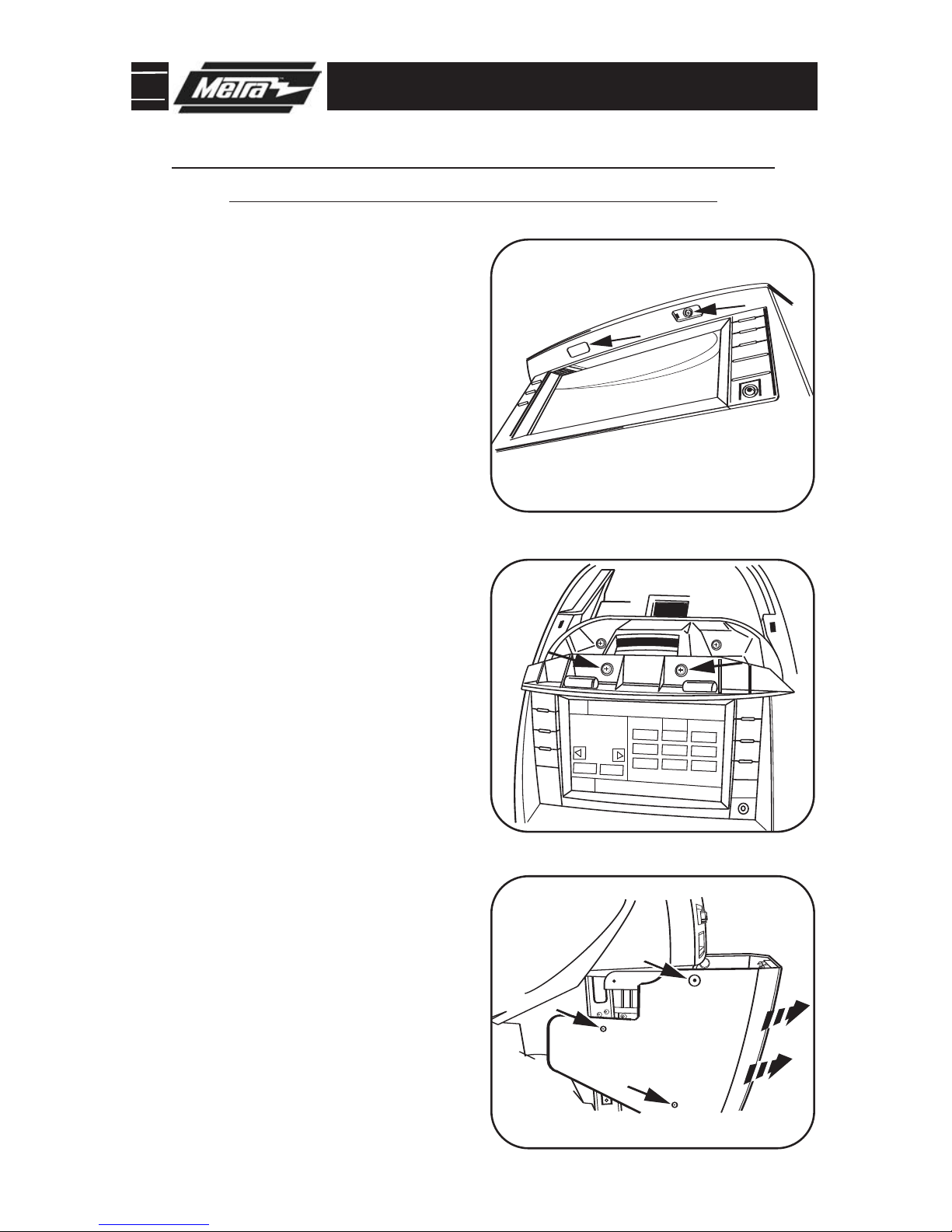

Lift up on panel above radio then

remove (2) Phillips screws exposed at

front edge of radio trim panel.

(

Figure B)

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Remove (3) plastic push pins per side

of bottom trim panel then slide panel

toward rear of van to access (2)

screws on bottom of radio trim panel.

(

Figure C)

Remove (2) screw covers facing up

above radio then remove the (2)

Phillips screws exposed. (

Figure A)

Continued on page 3.

99-6511 DASH DISASSEMBLY

123456

AUX

SET

VOLUME

PUSH ON PUSH AUDIO/SELECT

DISC

LIST

MUSIC

TYPE

SEL;ECT

TUNE/SCROLL

SEEKSEEK SCAN TIME INFO RW FF

Remove (2) Phillips screws exposed

at bottom edge radio trim panel.

(

Figure D)

Remove (4) Phillips screws securing

radio. (

Figure F)

Unclip and remove entire panel sur-

rounding radio including climate con-

trols, vents and clock. (

Figure E)

Continue to kit assembly.

CHRYSLER TOWN AND COUNTRY2008

DODGE GRAND CARAVAN 2008

99-6511 DASH DISASSEMBLY

DODGE AVENGER 2007-2008

123456

AUX

SET

VOLUME

PUSH ON PUSH AUDIO/SELECT

DISC

LIST

MUSIC

TYPE

SEL;ECT

TUNE/SCROLL

SEEKSEEK SCAN TIME INFO RW FF

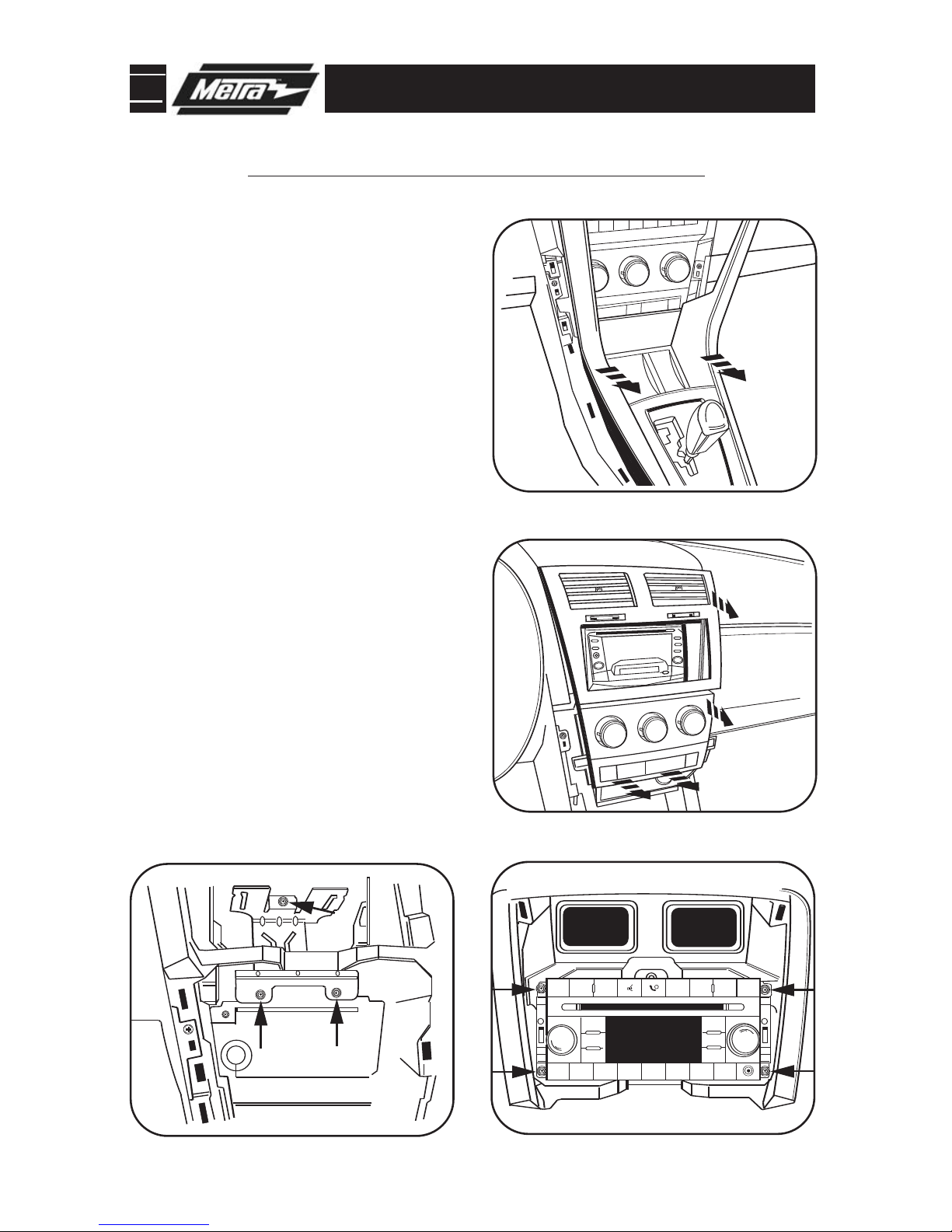

Unclip the center dash trim panel.

(

Figure B)

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Remove (4) screws securing the

radio. Disconnect and remove the

radio. (

Figure C)

Remove (3) screws securing the radio

rear support bracket and remove the

bracket. (

Figure D)

Unclip and remove the center console

trim panel. (

Figure A)

Continue to kit assembly.

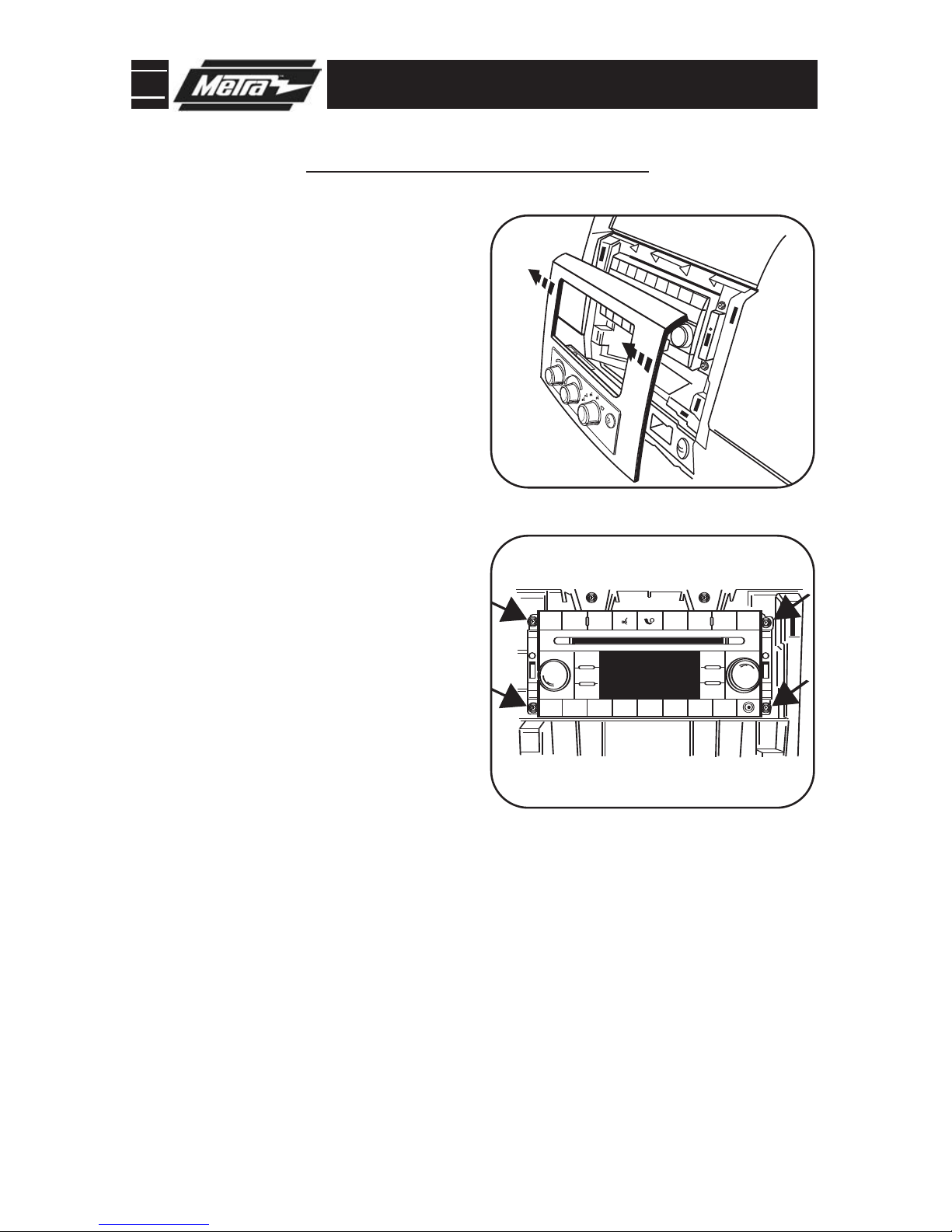

99-6511 DASH DISASSEMBLY

DODGE DAKOTA2008

123456

AUX

SET

VOLUME

PUSH ON PUSH AUDIO/SELECT

DISC

LIST

MUSIC

TYPE

SEL;ECT

TUNE/SCROLL

SEEKSEEK SCAN TIME INFO RW FF

Remove (4) Phillips screws securing

the radio. (

Figure B)

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip and remove the trim panel sur-

rounding the radio. (

Figure A)

Continue to kit assembly.

99-6511 DASH DISASSEMBLY

DODGE NITRO 2007

12345

23456

Remove (4) 7MM screws securing

radio. Unplug and remove radio.

(

Figure B)

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip entire panel surrounding radio

and climate controls, including a/c

vents. Unplug and remove panel.

Continue to kit assembly.

99-6511 DASH DISASSEMBLY

JEEP WRANGLER 2007

12345

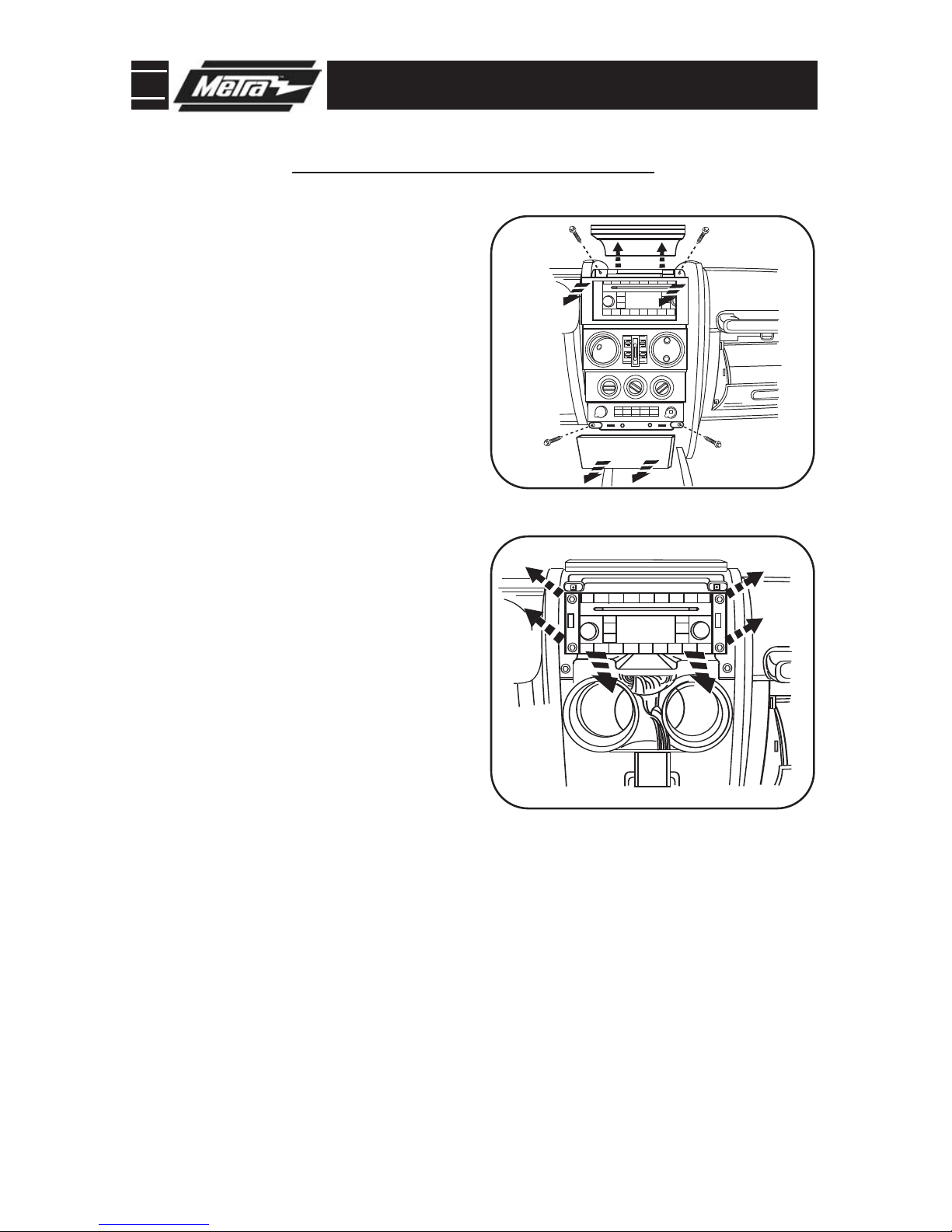

Remove (2) Phillips screws exposed

behind lower center panel. (

Figure A)

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip and remove the lower center

trim below a/c controls. (

Figure A)

Remove (2) Phillips screws exposed

behind upper center panel. (

Figure A)

Unclip and remove entire panel sur-

rounding radio and climate controls,

including a/c vents.

Remove (4) 7MM screws securing

radio. Unplug and remove radio.

(

Figure B)

Unclip and remove the upper center

trim starting towards the rear of the

panel. (

Figure A)

Continue to kit assembly.

99-6511 KIT ASSEMBLY

DIN MOUNT RADIO PROVISION WITH POCKET

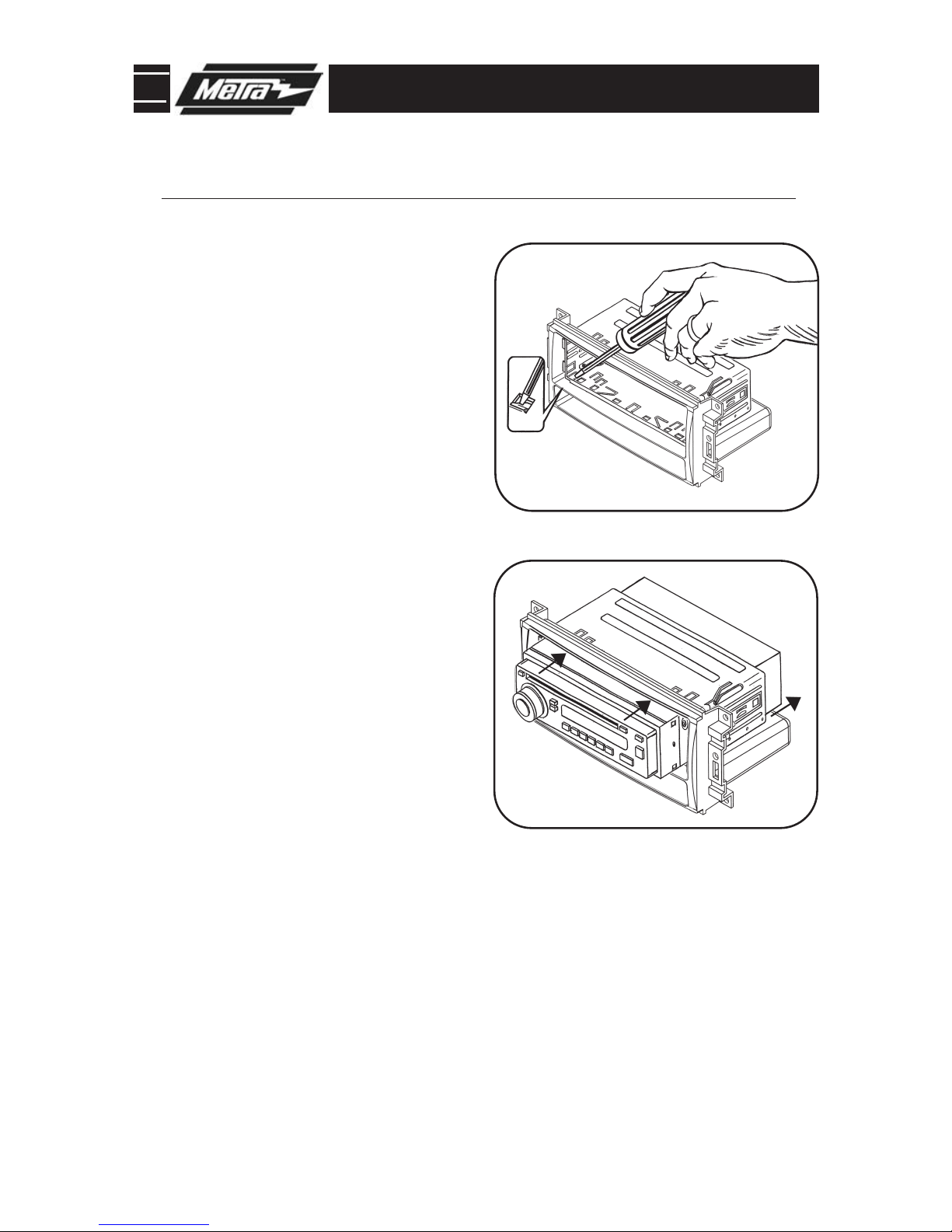

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs outward.

(Figure A)

Slide the aftermarket radio into the DIN

cage until it snaps into place.

(Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.
