INSTALLATION INSTR CTIONS FOR PART 95-3305

95-3305

KI FEA URES

• Double DIN Radio Provision

• Stacked ISO Units Provision

A) Double DIN rim Plate B) Double DIN Brackets

KI COMPONEN S

Small Flat Blade Screwdriver • Panel Removal ool

• Phillips Screwdriver • Socket Set • orx Driver • Allen Wrench

1-800-221-0932

www.metraonline.com

OOLS REQUIRED:

APPLICATIONS

CH EV RO L ET

Avalanche 2007-10/Equinox 2007-09

Express Van 2008-10/Impala 2006-10

Monte Carlo 2006-07/Tahoe 2007-11

Silverado 2007-11 (Excluding Classic Models)

Suburban 2007-10/Traverse 2009-11

BUICK Enclave 2008-11, Lucerne 2006-10

GMC Acadia 2007-11

Savanna 2008-10

Sierra Denaili 2007-11 (Excluding Classic Models)

Yukon Denali/ L 2007-10

HUMMER H2 2008-09

PONTIAC Torrent 2007-09

SATURN Outlook 2007-09/Vue 2008-09

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

Wiring Harness:

• See www. etraonline.co for specific interface

Antenna Adapter:

• 40-CR10 - Chrysler antenna adapter 2002-up

Da h Di a embly

- Chevrolet Impala 2006-2010. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

- Chevrolet Monte Carlo 2006-2007 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

- Buick Lucerne 2006-2010 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

- Chevrolet Avalanche 2007-2010 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

- Chevrolet Silverado

(Excluding Classic Models)

2007-2011 . . . . . . . . . . . . . . . . . . . . . .2

- Chevrolet Suburban 2007-2010 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

- Chevrolet Tahoe 2007-2011 . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

- GMC Sierra/Denali

(Excluding Classic Models)

2007-2011 . . . . . . . . . . . . . . . . . . . . . . 2

- GMC Yukon/ L Denali 2007-2010 . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . .2

- Chevrolet Express Van 2008-10/GMC Savanna 2008-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

- Suzuki L-7 2007-2009 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

- Chevrolet Equinox 2007-09 /Pontiac Torrent 2007-09 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

- Buick Enclave 2008-11/ GMC Acadia 2007-11/Saturn Outlook 2007-09 . . . . . . . . . . . . . . 6

- Chevy Traverse 2009-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

- Hummer H2 2008-2009 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

- Saturn Vue 2008-2009 . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Kit A embly

- Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

- Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Final A embly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

TABLE OF CONTENTS

95-3305

*Note:

Refer also to the instructions included with the aftermarket radio.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take

steps toward a better tomorrow.

95-3305 DASH DISASSEMBLY

B ICK L CERNE

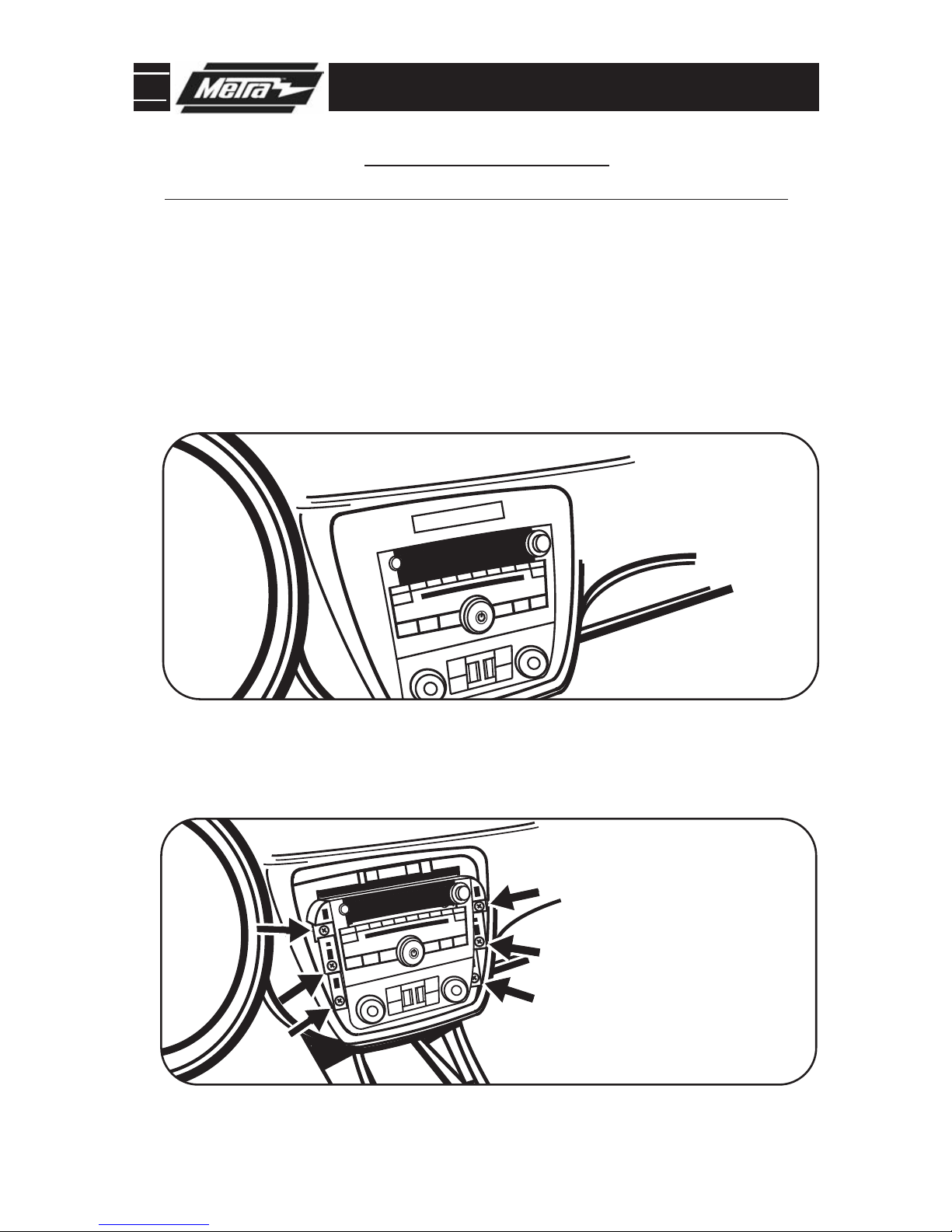

CHEVY IMPALA / MONTE CARLO 2006-2010

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip and remove the trim panel

around radio and a/c control.

(Figure A)

Remove (6) 9/32” screws to extract

radio and a/c control from sub dash.

(Figure B)

Continue to kit assembly.

95-3305 DASH DISASSEMBLY

Unclip and remove radio trim panel.

(Figure A)

Remove (2) 8mm screws securing

switch panel below climate controls.

Unplug and remove switch panel.

(Figure B)

Remove (2) 8mm screws securing cli-

mate controls. Unplug and remove cli-

mate controls.

(Figure B)

Remove (4) 9/32” screws securing

radio. Unplug and remove the radio.

(Figure C)

Continue to kit assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Disconnect the negative battery termi-

nal to prevent an accidental short cir-

cuit.

SILVERADO

(Excludin Classic Models)

/SUBURBAN

CHEVY AVALANCHE/TAHOE

GMC YUKON/SIERRA

(Excludin Classic Models)

2007-11

95-3305 DASH DISASSEMBLY

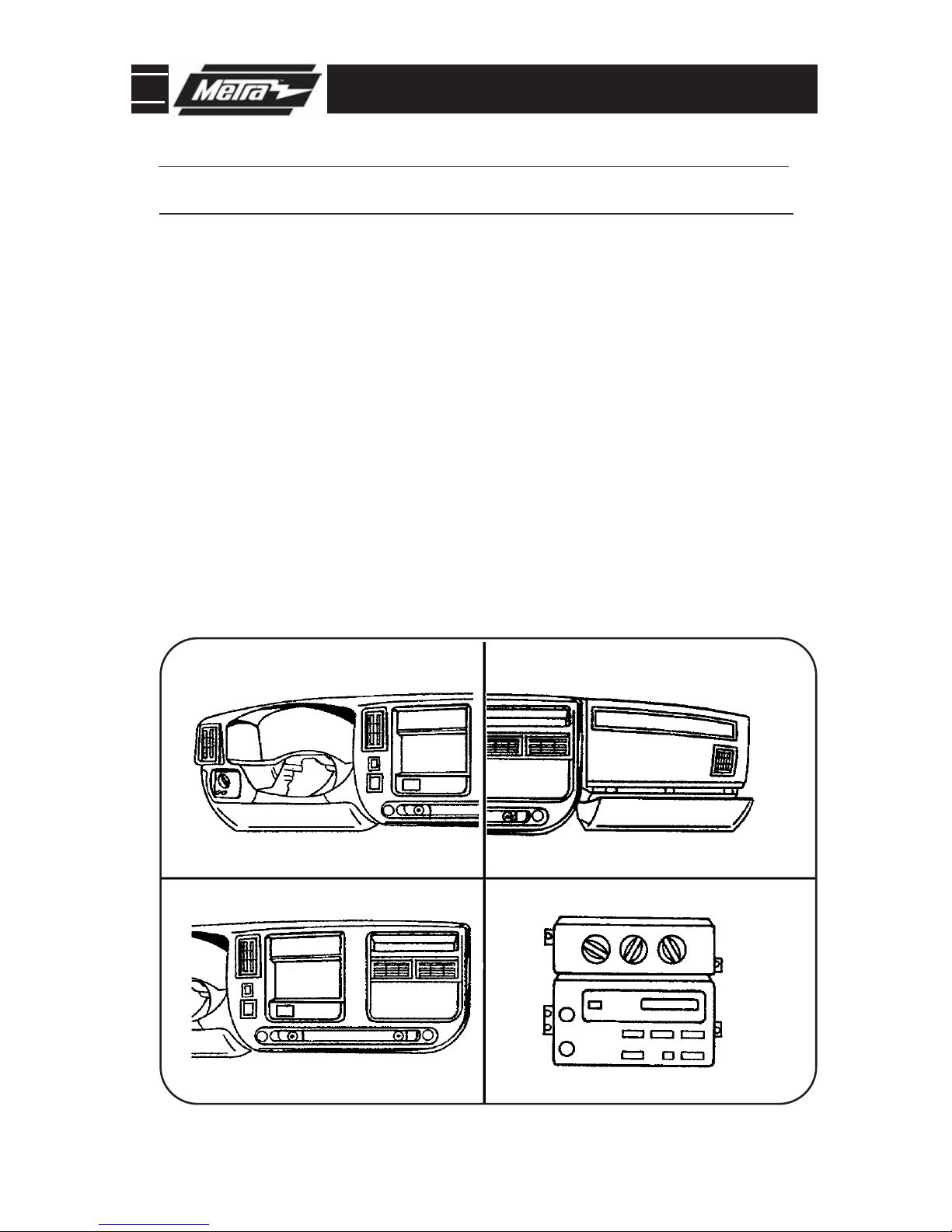

CHEVY EXPRESS VAN / GMC SAVANNA 2008-10

Remove (2)10mm bolts from below knee bolster under steering column and remove

panel.

Remove (2)10mm bolts from panel below passenger dash airbag and remove panel.

Unsnap and remove radio and instrument cluster panel. (May not be necessary to

completely remove radio and instrument cluster panel to access radio.)

Remove (4) 9/32” bolts to remove radio.

Continue to kit assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Disconnect the negative battery terminal to prevent an accidental short circuit.

95-3305 DASH DISASSEMBLY

AUX

BAND

FWD

REV

SEEK SEEK

PASSENGER AIR BAG

AUX

12:02

103:5

S Z KI XL-7 2007-09

Press in on sides of the shifter boot to

release it from the shifter trim panel.

(Figure A)

Lift the boot up to access the Allen

screw securing the shifter knob to the

shifter lever. Loosen the Allen screw

and remove the shifter knob.

Remove (1) torx screw from the shifter

trim panel

(Figure C)

, then using a

panel removal tool unsnap the shifter

trim panel. Unplug and remove the

panel.

(Figure D)

Remove (4) 9/32” screws securing

the radio. Unplug and remove the

radio.

Using a panel removal tool unsnap

the radio trim panel. Unplug and

remove the panel.

(Figure E)

Continue to kit assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Disconnect the negative battery termi-

nal to prevent an accidental short cir-

cuit.

95-3305 DASH DISASSEMBLY

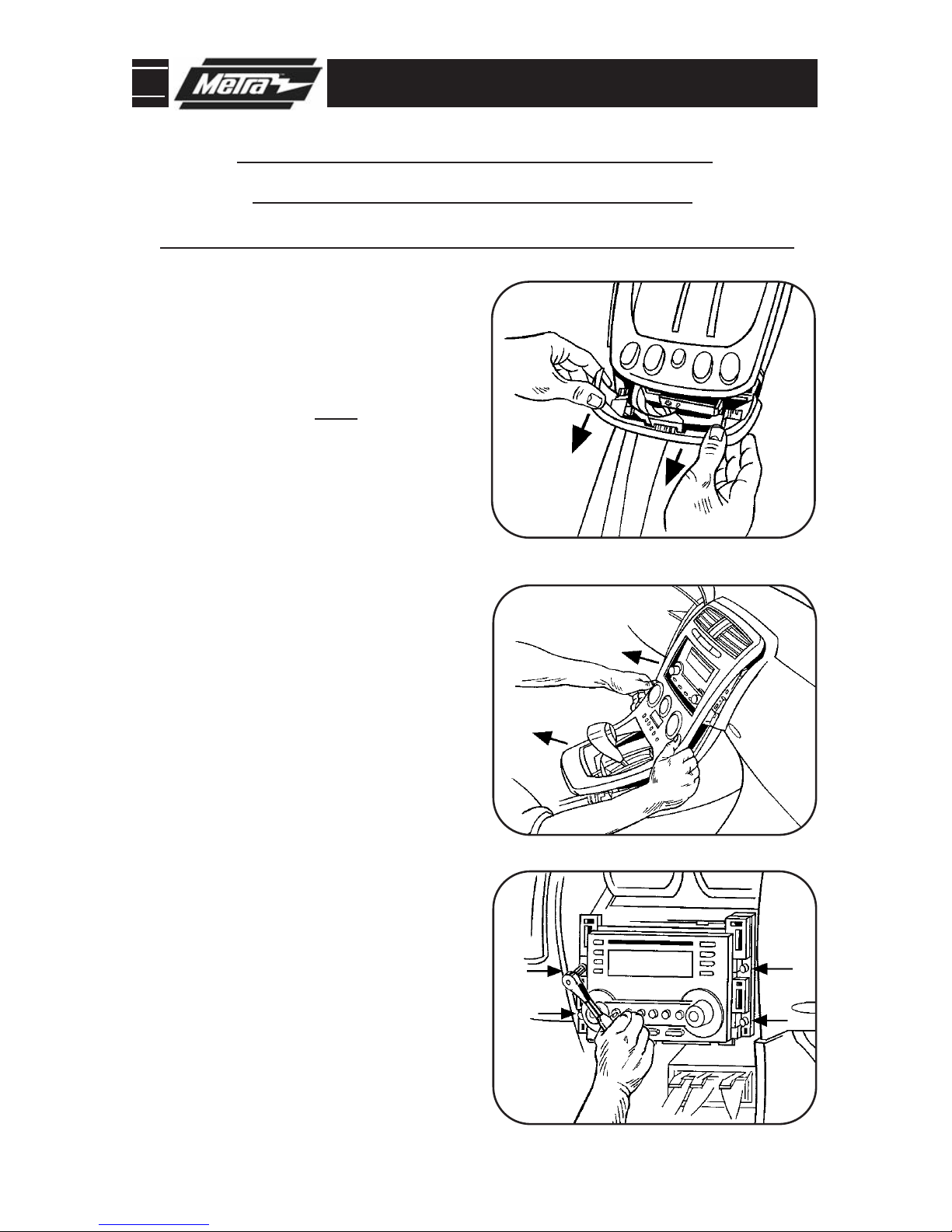

CHEVROLET EQ INOX 2007-09

PONTIAC TORRENT 2007-09

Unsnap panel below power window

switch and remove. Note: This allows

you to unplug the window switch easi-

er.

(Figure A)

Unsnap and remove entire panel sur-

rounding radio and shifter.

(Figure B)

Remove (4) 9/32 screws securing

radio. Unplug and remove the radio.

(Figure C)

Continue to kit assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Disconnect the negative battery termi-

nal to prevent an accidental short

circuit.

95-3305 DASH DISASSEMBLY

BUICK ENCLAVE / CHEVY TRAVERSE

GMC ACADIA

SATURN OUTLOOK

B ICK ENCLAVE 2008-11 / GMC ACADIA 2007-11

SAT RN O TLOOK 2007-09

Unclip the radio trim panel including

the climate controls. Unplug the cli-

mate controls and remove the panel.

(See drawings)

Remove (4) 9/32 screws securing the

radio. Unplug and remove the radio.

Continue to kit assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Disconnect the negative battery termi-

nal to prevent an accidental short cir-

cuit.

95-3305 DASH DISASSEMBLY

H MMER H2 2008-09

Unclip the radio trim panel including

the a/c vents. Unplug any harnesses

connected to the panel and remove the

panel.

(Figure A)

Remove (4) 9/32” screws securing the

climate controls. Unplug and remove

the climate controls.

Remove (4) 9/32 screws securing the

radio. Unplug and remove the radio.

Continue to kit assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Disconnect the negative battery termi-

nal to prevent an accidental short cir-

cuit.

95-3305 DASH DISASSEMBLY

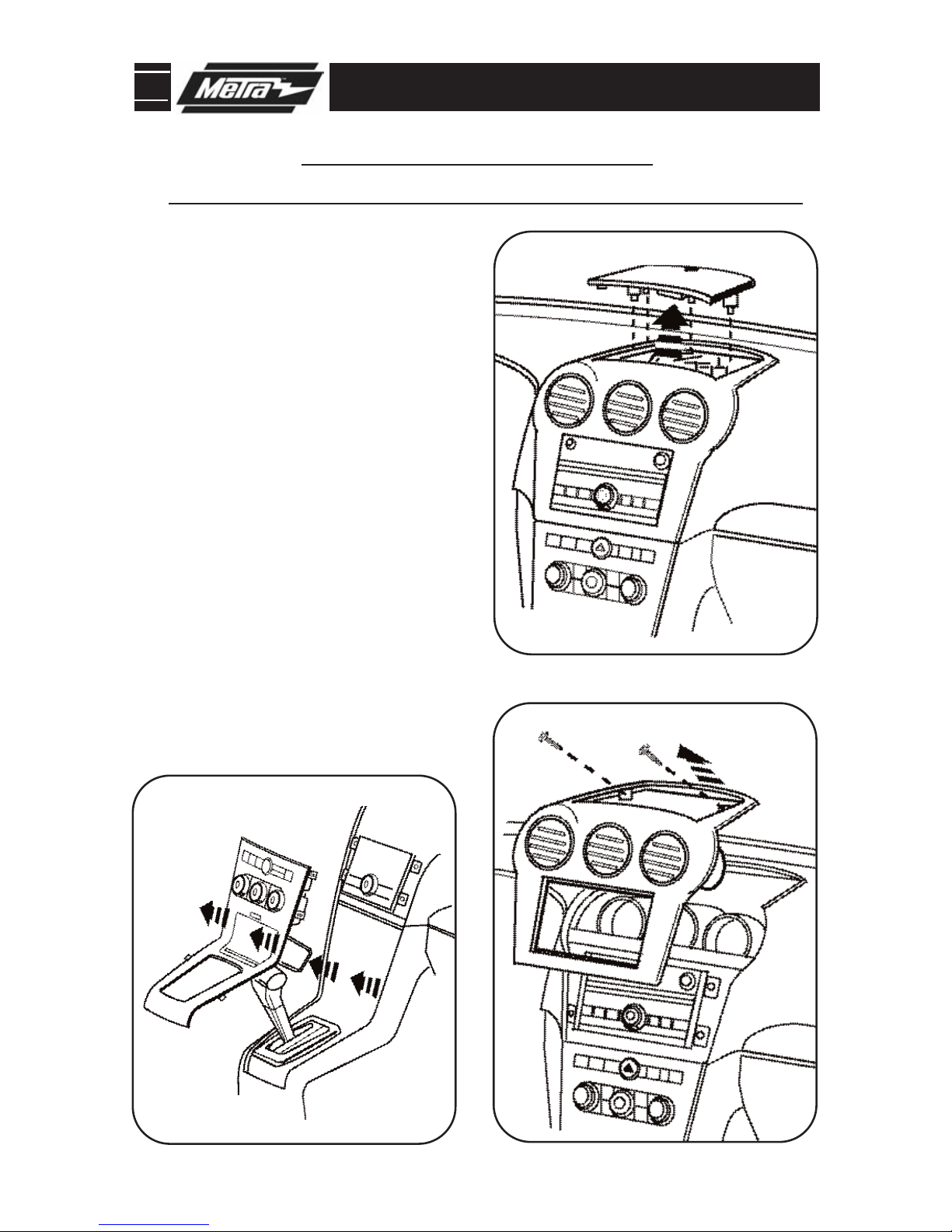

SAT RN V E 2008-09

Unclip and remove the trim panel on

top of the radio trim panel.

(Figure A)

Remove (2) Phillips screws exposed

under panel removed in step 2.

(Figure B)

Unclip and remove the radio trim panel

including the a/c vents.

(Figure B)

Remove (4) 9/32 screws securing the

radio. Unplug and remove the radio.

Unclip and remove the trim panel

surrounding the shifter including the

climate controls.

(Figure C)

Continue to kit assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Disconnect the negative battery termi-

nal to prevent an accidental short cir-

cuit.
