Optika ECOVISION Series Bedienungsanleitung

v 1.1 2017

Model

B-20R

B-20CR

B-50

B-50B

M-100FX

M-100FLed

ECOVISION Series

INSTRUCTION MANUAL

Page 2

Page 3

Warning

This microscope is a scientic precision instrument designed to last for many years with a minimum of mainte-

nance. It is built to high optical and mechanical standards and to withstand daily use. We remind you that this

manual contains important information on safety and maintenance, and that it must therefore be made acces-

sible to the instrument users. We decline any responsibility deriving from incorrect instrument use that does not

comply with this manual.

Symbols and conventions

The following chart is an illustrated glossary of the symbols that are used in this manual.

CAUTION

This symbol indicates a potential risk and alerts you to proceed with caution.

ELECTRICAL SHOCK

This symbol indicates a risk of electrical shock.

Safety Information

Avoiding Electrical Shock

Before plugging in the power supply, make sure that the supplying voltage of your region matches with the op-

eration voltage of the equipment and that the lamp switch is in “OFF” position. Users should observe all safety

regulations of the region. The equipment has acquired the CE safety label. However, users have full responsibil-

ity to use this equipment safely. Please follow the guidelines below, and read this manual in its entirety to ensure

safe operation of the unit.

Intended use

For teaching use only. Not intended for any animal or human therapeutic or diagnostic use.

Page 4

Overview B-20R

OBJECTIVE

NOSEPIECE

STAGE

EYEPIECE

FINE FOCUSING KNOB

COARSE FOCUSING

KNOB

MAIN BODY

LED LIGHT

ILLUMINATOR

LOCK SCREW

OBSERVATION

HEAD

CARRYING HANDLE

SLIDE CLAMP

CONDENSER

Page 5

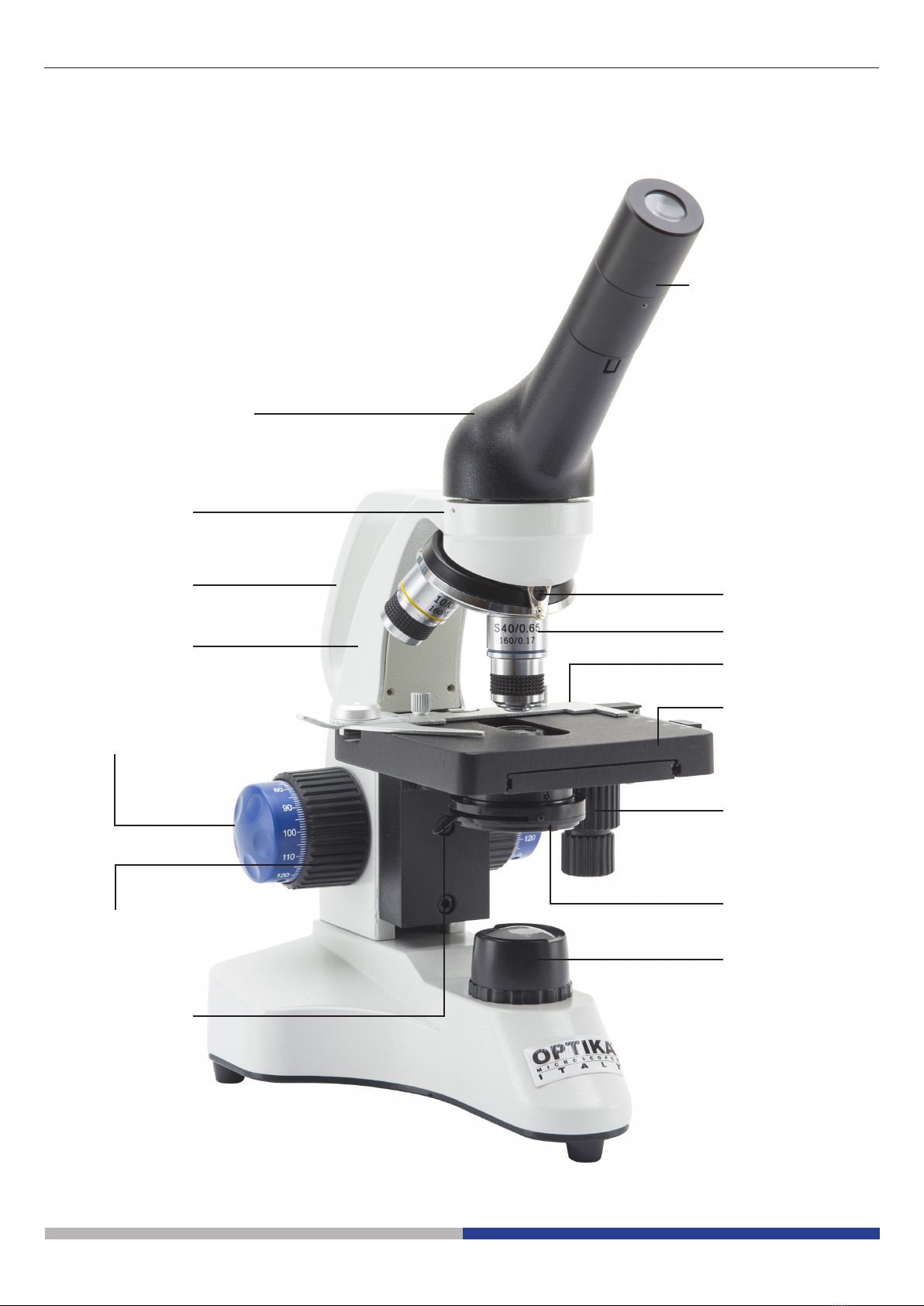

Overview B-20CR

NOSEPIECE

OBJECTIVE

STAGE

TRANSLATING

KNOBS

CONDENSER

EYEPIECE

COARSE FOCUSING

KNOB

FINE FOCUSING KNOB

MAIN BODY

IRIS DIAPHRAGM

LED LIGHT

ILLUMINATOR

LOCK SCREW

OBSERVATION

HEAD

CARRYING HANDLE

SLIDE CLAMP

Page 6

OBJECTIVE

CONDENSER

BRIGHTNESS ADJUSTMENT

ON/OFF KNOB

EYEPIECE

MAIN BODY

OBSERVATION

HEAD

FINE FOCUSING

KNOB

COARSE

FOCUSING KNOB

Overview B-50

STAGE

SLIDE CLAMP

NOSEPIECE

Page 7

OBJECTIVE

CONDENSER

BRIGHTNESS ADJUSTMENT

ON/OFF KNOB

EYEPIECES

MAIN BODY

OBSERVATION

HEAD

FINE FOCUSING

KNOB

COARSE

FOCUSING KNOB

Overview B-50B

STAGE

SLIDE CLAMP

NOSEPIECE

IRIS DIAPHRAGM

Page 8

OBJECTIVE

CONDENSER

ILLUMINATOR

EYEPIECE

MAIN BODY

OBSERVATION

HEAD

FINE FOCUSING

KNOB

COARSE

FOCUSING KNOB

Overview M-100FX

STAGE

SLIDE CLAMP

NOSEPIECE

IRIS DIAPHRAGM

Page 9

OBJECTIVE

ILLUMINATOR

CONDENSER

BRIGHTNESS

ADJUSTMENT

KNOB

EYEPIECE

MAIN BODY

OBSERVATION

HEAD

FINE FOCUSING

KNOB

COARSE

FOCUSING KNOB

Overview M-100FLed

STAGE

SLIDE CLAMP

NOSEPIECE

IRIS DIAPHRAGM

Page 10

Unpacking

The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the container

and lift the top half of the container. Take some care to avoid that the optical items (objectives and eyepieces)

fall out and get damaged. Using both hands (one around the arm and one around the base), lift the microscope

from the container and put it on a stable desk.

Using the microscope

Fig.2

Fig.3

Fig.4

Fig.5

Fig.1

1. Turn the observation head to a comfortable

position for observation.

2. Ensure that the specimen is centred over

the stage opening. Lock the specimen

slide on the mechanical stage using the

two slide clamps.

3. The microscope comes with an electrical

illuminator. Insert the plug of the external

power supply into the power socket on the

back of the microscope and turn on the light

by using the main switch on the microscope.

On B-50 and B-50B, turn the light control

knob located under the condenser.

4. Rotate the coarse focusing knob to bring

the slide into focus with the 4x objective.

Adjust the ne focusing knob (when

included) to get the image sharp and clear.

5. Turn the nosepiece to choose the objective

you need.
