Kärcher 2201 F Bedienungsanleitung

5.960-023 (06.02)

2201 F

English

Brief instructions

Before first use

When unpacking the appliance, make sure that

all listed parts are supplied. You will find the filter

bag and the swivel casters in the container. The

swivel casters still have to be fitted to this

appliance (see ”Preparation” point).

Please inform your dealer if there has been any

damage during transportation.

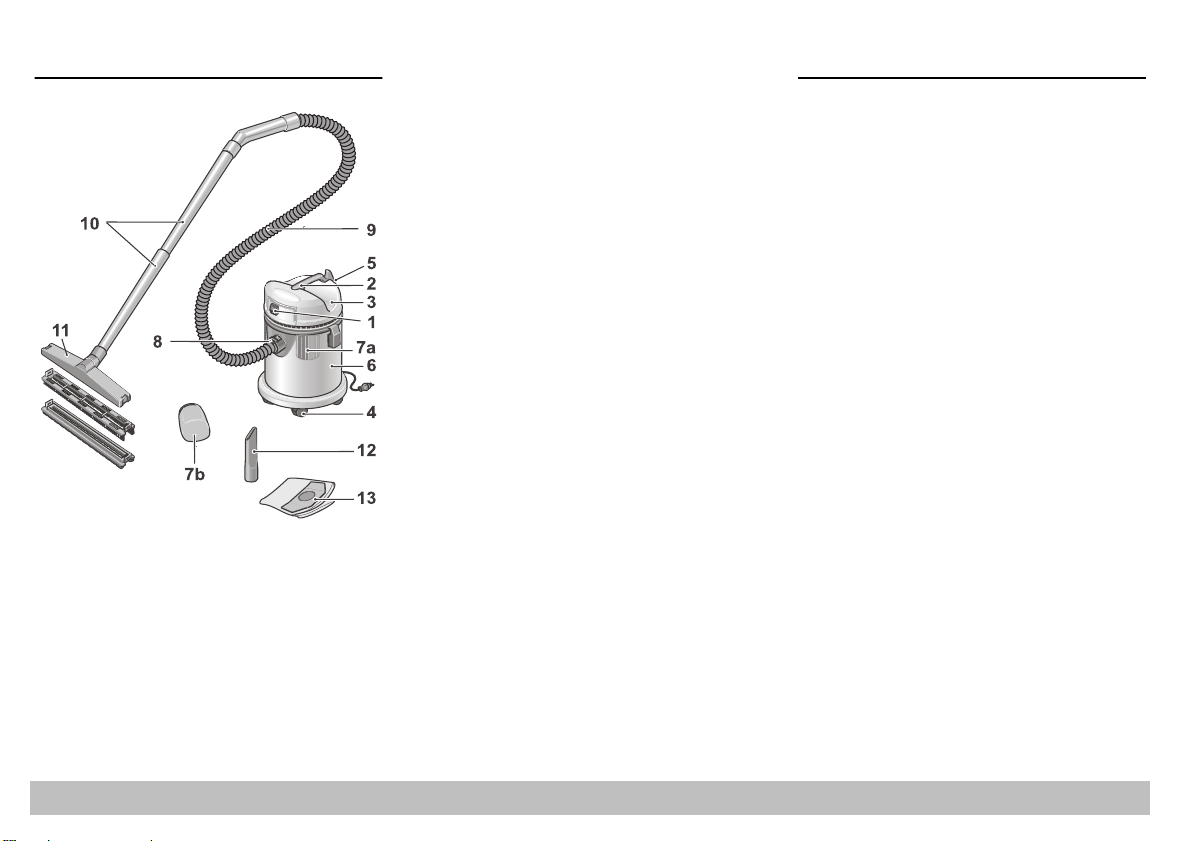

1ON/OFFSwitch

2 Carry handle

for carrying the appliance on stairs, etc.

3 Motor housing

4 Swivel casters

make it easy to draw the appliance along

behind

5 Accessory compartment

for storing the accessories

6 Dirt container

collects the wet and dry dirt that is being

vacuumed

7 Filter, filters out suspended particles and

protects the turbine

7a Cartridge filter

set in for dry vacuuming

7b Foam filter

set in for wet vacuuming

8 Suction hose connection

9 Suction hose

10 Suction tube

11 Floor nozzle with inserts

can be used for wet and dry vacuuming

12 Crevice nozzle

for edges, crevices and around radiators

13 Paper filter bag

for dust-free emptying of the appliance after

dry vacuuming

Safety notes

Appropriate use

The appliance is intended for use as a wet and

dry vacuum cleaner in accordance with the

descriptions and safety instructions in these

operating instructions.

Before first use of the machine read these

operating instructions and comply with them.

Use the appliance exclusively

– for non-commercial purposes,

– with accessories and replacement parts

authorised by Kärcher.

General safety notes

Only allow children and adolescents to use the

machine when under supervision.

Never leave the machine unattended if the

master switch is on.

Electrical connection

The voltage shown on the model plate must

concur with that of the electricity mains supply.

mDanger of electric shock!

Never grasp the mains plug with wet hands.

Check the connection lead and mains plug for

damage before each use. Have a damaged

connection lead replaced immediately by an

authorised Customer Service point or by an

electrician.

8English

When using the machine in wet rooms, e.g. in the

bathroom, only connect it to sockets which are

connected in series with a ground fault circuit

interrupter. In case of doubt, consult an

electrician.

mDanger of explosion!

Never use to appliance to vacuum explosive

liquids, flammable gases, explosive dusts, or

undiluted acids or solvents! These include petrol,

paint thinner, and heating oil, which may form

explosive vapours or mixtures when agitated by

the suction air. This applies equally to acetone,

undiluted acids and solvents, and aluminium and

magnesium dusts. Furthermore, these

substances may cause appliance materials to

corrode.

Do not use the appliance to vacuum burning or

smouldering objects.

When using the appliance in areas of potential

risk (e.g. filling stations), the pertinent safety

guidelines must be observed. It is not permitted

to use the appliance in potentially explosive

locations.

Environmental protection

Disposal of packaging

The packaging is recyclable. Please dispose of it

at a recycling facility.

Disposing of the appliance

You can obtain information about environmentally

correct disposal from your Kärcher dealer.

Operating the cleaner

Preparation

lRemove the motor housing, take the swivel

casters out of the container.

lMount the swivel casters.

lPlace the motor housing on the container and

close.

Note: Motor housing can be attached in one

position only (switch towards front).

lConnect accessories.

Switching on

mCaution:

Never use the appliance without a filter!

lInsert the mains plug.

lSwitch on the appliance.

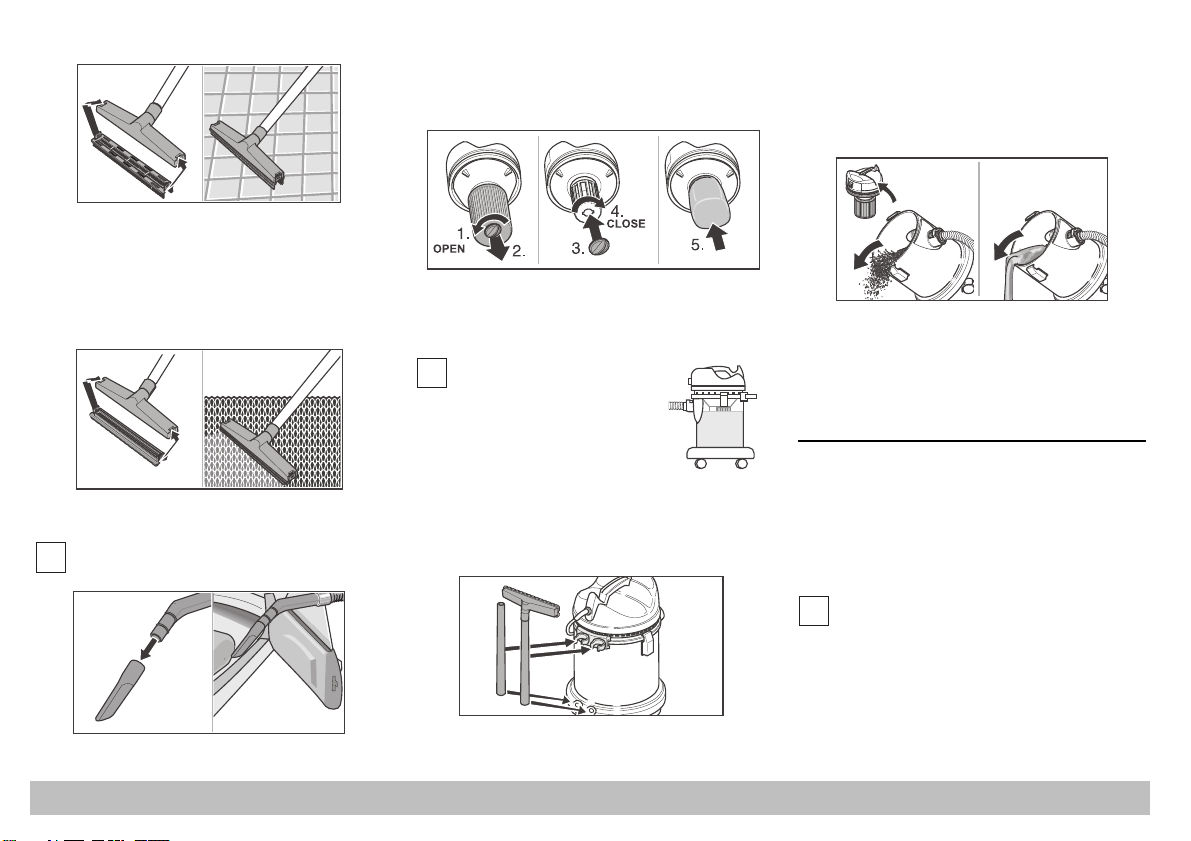

Operations with floor nozzle

mCaution!

When changing from wet to dry vacuuming

note the following:

If you vacuum dry dust while the filter is still

wet, the dust will stick to the filter making it

impermeable, and may thus damage it beyond

repair.

Therefore: Always allow wet filters to dry

before use!

Dry vacuuming – stubborn stains

lAs it capacitates dust-free emptying, we

recommend that you insert the paper filter bag

as well. This has the added advantage that the

filter does not become dirty so quickly.

English

lAttach the insert for stubborn stains.

Dry vacuuming - carpets

lAs it capacitates dust-free emptying, we

recommend that you insert the paper filter bag

as well. This has the added advantage that the

filter does not become dirty so quickly.

lAttach the insert for carpets.

Working with the crevice nozzle

The crevice nozzle can be used for both wet

and dry-vacuuming.

Wet vacuuming

lNever use a paper filter bag.

lRemove the cartridge filter and set in the foam

filter.

mCaution!

If the appliance starts to leak foam or liquid,

switch it off immediately.

As soon as the container is

full, a float closes the suction

opening and the suction turbine

runs at a higher speed. Switch off

the appliance immediately and

empty the container.

Parking

lSwitch off the appliance.

lAttach the accessories to the appliance before

taking a break.

When finished

lSwitch off the appliance.

lDraw out the mains plug.

lRemove the motor housing and empty the

container.

lClean the container after every use.

lCarry the appliance by the carry handle only.

lStore the appliance in a safe place.

Care / Maintenance

mDanger!

Before any care and maintenance work on the

machine draw out the mains plug.

Cleaning the appliance and

accessories

The appliance must not be cleaned using

a water hose or a high-pressure water jet

(danger of short-circuit or other damages).

lWipe down the exterior of the appliance using

a damp cloth. Do not use any aggressive

agents such as scouring powder. Rinse out

accessory parts when necessary.

MAX

2. i

10 English

Changing the filter

lPoor suction –clean the filter under flowing

water and allow to dry before inserting it into

the appliance. Replace the filter if damaged.

Order no. 6.414-552

Changing the filter bag

lPoor suction –the paper filter bag is full.

Replace it.

Order no. 6.959-130 (5x)

Service

Warranty

In each country the warranty terms issued by our

authorized marketing company are valid. We

remedy any fault in the cleaner free of charge

within the warranty period providing the cause of

the fault proves to be a material or manufacturing

error.

Should you wish to call upon the guarantee,

please apply to your dealer or nearest authorised

Customer Service centre taking along also the

accessories and bill of sale.

Customer Service

If you have any questions or malfunctions our

Kärcher agency will be pleased to help you.

See the back page for addresses.

EU Declaration of Conformity

We hereby declare that the equipment described below conforms

to the relevant fundamental safety and health requirements of the

appropriate EU Directives, both in its basic design and

construction as well as in the version marketed by us.

This declaration will cease to be valid if any modifications are

made to the machine without our express approval.

Product: Wet & dry vacuum cleaner

Ty p : 1.336-xxx

Relevant EU Directives:

EU Machinery Directive (98/37/CE)

EU Low-Voltage Equipment Directive (73/23/EEC) amended by

93/68/EEC

EU Directive on Electromagnetic Compatibility (89/336/EEC)

amended by 91/263/EEC, 92/31/EEC, 93/68/EEC

Harmonised standards applied:

DIN EN61000-3-2:1995; DIN EN61000-3-3:1995; DIN EN60335-

1; DIN EN60335-2-2; DIN EN55014-2:1997; DIN EN55014-

1:1999

National standards applied: –

Appropriate internal measures have been taken to ensure that

series-production units conform at all times to the requirements of

current EU Directives and relevant standards.

The signatories are empowered to represent and act on behalf of

the company management.

Technical Specifications

AUS

Nominal voltage 220–240 V 240 V

1~50/60 Hz 1~50/60 Hz

Fuse protection

(surge-proof) 10 A 10 A

Container volume, net 18 l 18 l

Water uptake 8 l 8 l

Fan data: Pmax 1200 W 1200 W

Pnom 1000 W 1000 W

Weight 5.5 kg 5.5 kg

Class of protection II II

Mains cable: type

H05VV-F2x1 4.5 m 4.5 m

Sound level 74 dB(A) 74 dB(A)

We reserve the right to introduce technical

changes without prior notice.

Circuit diagram

C1 Capacitor

M1 Suction turbine

S1 Switch

X1 Plug

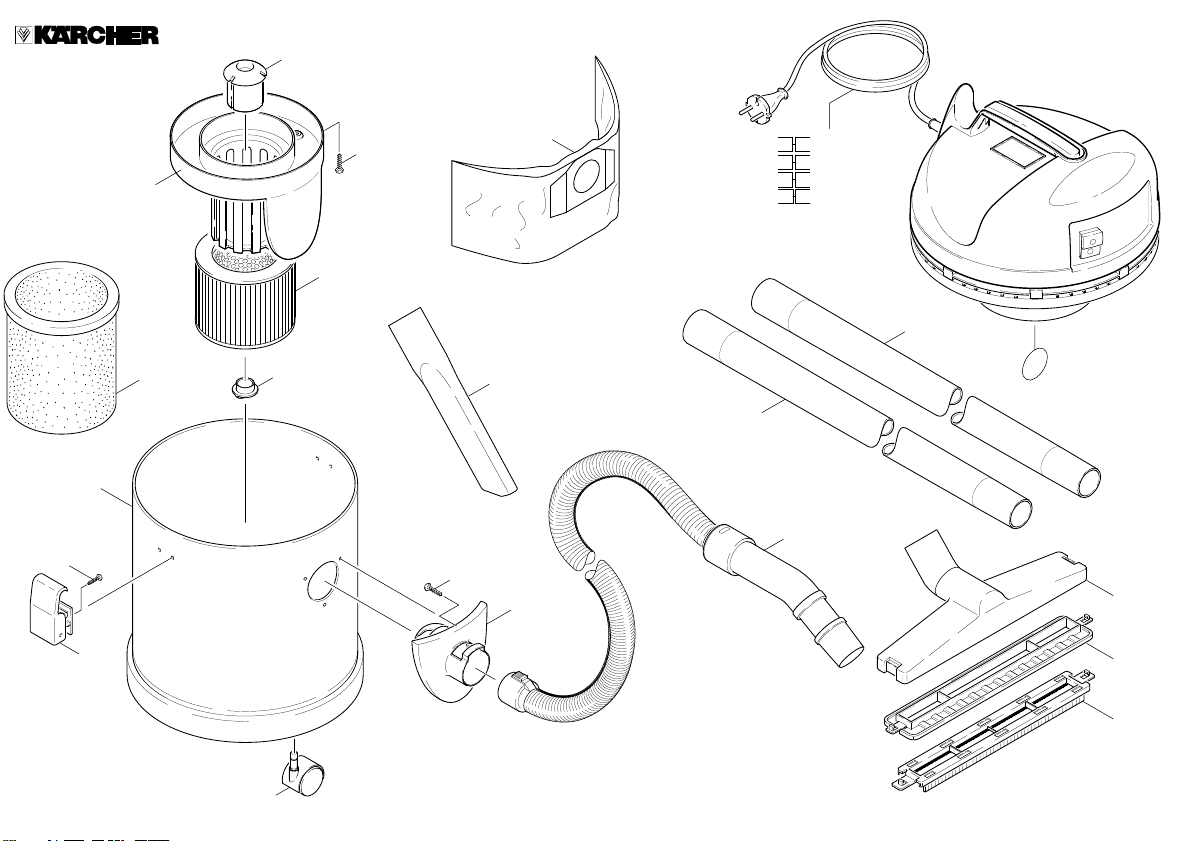

6.959-161.0

7.303-361.0

6.435-353.0

2201 F

9.411-343.0

6.959-129.0

9.411-726.0

6.959-361.0

5.960-023.0 06.06.2002

1.336-101.0 * EUR

1.336-102.0 * CH

1.336-103.0 * AUS

1.336-112.0 * GB

6.414-552.0

4.075-012.0

9.411-630.0

6.903-396.0

6.903-860.0

6.903-861.0

6.959-175.0

5.585-026.0

6.902-097.0

6.959-130.0

6.900-385.0

6.647-915.0

6.647-916.0

6.641-973.0

6.647-914.0

1.336-101.0 * EUR

1.336-102.0 * CH

1.336-103.0 * AUS

1.336-112.0 * GB

5.731-595.0
