INSTALLATION INSTRUCTIONS FOR PART 95-7801

95-7801

APPLICATIONS

See Application List Inside

KIT FEATURES

•Double DIN Radio Provision

•Stacked ISO Units Provision

•A) Radio Housing • B) Rear Support Tray • C) ISO Brackets

•D) Mounting Bracket (Acura legend) • E) (2) #8 x 1/2” Phillips Pan Head Screws

• F) (6) #6 x 1/4” Phillips Flat Head Screws

KIT COMPONENTS

TOOLS REQUIRED:

•Phillips Screwdriver • Cutting Tool

1-800-221-0932

www.metraonline.com

DEF

Dash Disassembly / Kit Preparation

-ACURA

-CL 1997-99 . . . . . . . . . .

..........................

......1

-Integra 1990-93 . . . . . . .

.........................

. . . . . . 1

-Integra 1994-01 . . . . . . . . . . . . . . . . .

................

. . . . . . 2

Legend 1990-96 ..............................

. . . . . . 2

-TL 1996-98 . . . . . . . . . .

..........................

. . . . . . 3

-Vigor 1992-94 . . . . . . . . .

.........................

. . . . . . 3

-HONDA

-Accord 1990-93 . . . . . . . . . . . . . . . . .

................

. . . . . . 4

-Accord 1994-97 . . . . . . . . . . . . . . . . .

................

. . . . . . 4

-Accord 1998-02 .................

................

......5

-Civic 1999-00 . . . . . . . . . . . . . . . . . . .

................

. . . . . . 5

-CRV 1997-01

.................

................

. . . . . . 6

-CRV 2002-06 . . . . . . . . . . . . . . . . . . . .

................

. . . . . . 6

-Odyssey 1995-99 ................

................

..... . 7

-Odyssey 1999-04 . . . . . . . . . . . . . . . .

................

......7

-Prelude 1992-96 . . . . . . . . . . . . . . . . .

................

. . . . . . 8

-Prelude 1997-01 . . . . . . . . . . . . . . . . .

................

. . . . . . 8

-ISUZU

-Oasis 1996-99 . . . . . . . . . . . . . . . . . .

................

. . . . . . 7

Kit Assembly

-Kit Assembly Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

-DIN Radio with Pocket Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

-ISO Mount Radio with Pocket Provision . . . . . . . . . . . . . . . . . . . . . . . 10

Final Assembly ..........................................11

TABLE OF CONTENTS

95-7801

*Note:

Refer also to the instructions included with the aftermarket radio.

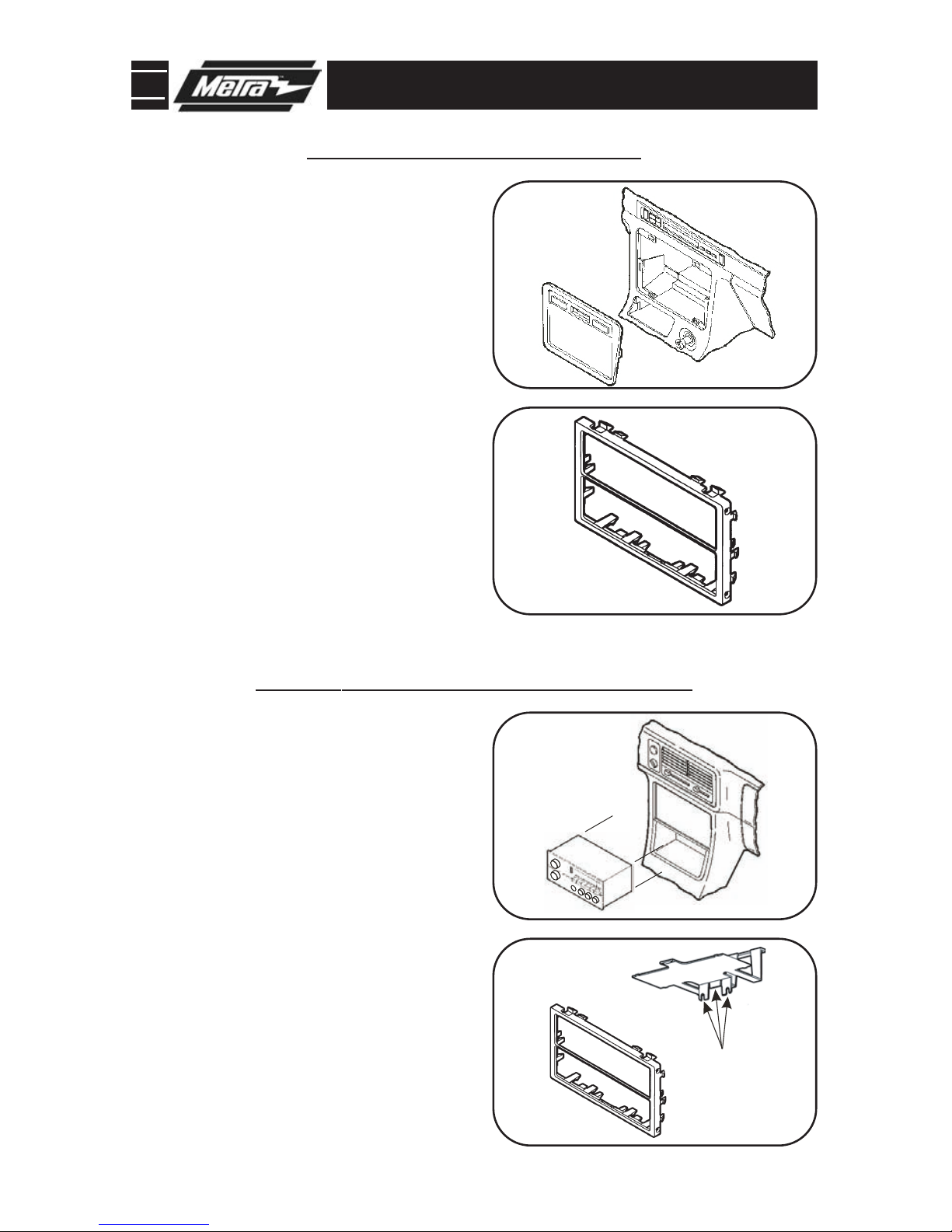

95-7801 DASH DISASSEMBLY

ACURACL 1997-1999

Unclip the radio trim bezel and disconnect the

clock and climate control wiring. Remove (2)

8mm hex-head screws securing the factory

head unit and disconnect the wiring. (Fig. A)

Cut and remove all mounting clips on the Radio

Housing EXCEPT clips "A" and "H".(Fig. B)

Skip to step #3b on Page 10.

ACURAINTEGRA1990-1993

Remove (3) screws from eachside of the center

console and remove the console. Remove (2)

screws securing the factory head unit to the

sub-dash support bracket. Slide the head

unit/pocket assembly out and disconnect the

wiring. (Fig. A)

"A"

"H"

"C"

"H"

Fig. A

Fig. B

3Cut and remove the mounting tabs from the bot-

tom of the Rear Support Tray(Fig. A). Cut and

remove all mounting clips on the Radio

Housing EXCEPT clips "C" and "H" (Fig.B).

Skip to step #3b on Page 10.

1Disconnect the negative batteryterminal to pre-

vent an accidental short circuit.

1Disconnect the negative battery terminal to pre-

vent an accidental short circuit.

95-7801 DASH DISASSEMBLY

ACURAINTEGRA1994-2001

Remove the cover cap located under the emer-

gency brake and remove (2) screws exposed.

Remove (2) screws from the rear corners of the

lower dash trim bezel and remove. Remove the

ashtray and (2) screws exposed. Unsnap the

ashtray housing and disconnect the cigarette

lighter harness. Remove the gear shifter knob

and unsnap the shifter trim. Remove (2) screws

below the radio opening and remove the upper

dash trim bezel. Remove (2) 8mm screws secur-

ing the factory head unit and disconnect the

wiring.(Fig. A)

ACURALEGEND 1990-1996

Remove (2) screws below the ashtray.

Unclip the dash trim bezel. Disconnect the

cigarette lighter wiring and remove the

bezel. Remove (2) bolts securing the rear

of the factoryhead unit and disconnect the

wiring.

(Fig. A)

"C"

Fig. A

Fig. B

"H"

"E"

"J"

Fig. A

Fig. B

1Disconnect the negative battery terminal to pre-

vent an accidental short circuit.

1Disconnect the negative battery terminal to pre-

vent an accidental short circuit.

3Cut and remove all mounting clips on the Radio

Housing EXCEPT clips "C" and "H" (Fig. A). Cut

and remove the slots on the bottom of the ISO

Brackets (Fig.B). (THE REAR SUPPORTTRAY

WILL NOT BE USED). (Fig. B)

Skip to step #3b on Page 10.

3Attachthe Mounting Bracket to the bottom of

the Rear Support Tray (Fig. A). Cut and remove

all mounting clips on the Radio Housing

EXCEPT clips "E" and "J". (Fig. B)

Skip to step #3b on Page 10.

95-7801 DASH DISASSEMBLY

ACURATL 1996-1998

Disconnect the negative battery terminal to pre-

vent an accidental short circuit.

Disconnect the negative battery terminal to pre-

vent an accidental short circuit.

Using a small screwdriver, unclip the perimeter

of the radio trim bezel. Disconnect the climate

control and rear defroster wiring and remove

the bezel. Remove (4) Phillips screws securing

the factory head unit/trim bezel assembly.

Loosen (2) Phillips screws securing the back of

the head unit to the metal housing and slide the

unit out. (It is NOT necessary to remove the

screws securing the metal housing to the

bezel). Disconnect the wiring.(Fig. A)

ACURAVIGOR 1992-1994

Remove the access cap from the climate control

cluster and (1) screw exposed. Unclip the clus-

ter and remove (2) screws exposed. Remove the

ashtray and (2) Phillips screws exposed.

Remove the cover caps from each front corner of

the center console and the screws exposed.

Open the storage compartment, lift up the carpet

and remove (2) screws exposed. Lift up on the

center console and remove. Unclip the radio trim

bezel and disconnect the wiring. Remove (2)

bolts from the backof the factory head unit and

disconnect the wiring. (Fig. A)

Cut and remove the mounting tabs from the bot-

tom of the Rear Support Tray (Fig. A). Cut and

remove all mounting clips on the Radio Housing

EXCEPT clips "A" and "H" (Fig.B).

Skip to step #3b on Page 10.

"B"

Fig. B

Fig. C

Fig. A

"K"

"A"

"H"

Fig. B

"A"

Cut and remove the mounting tabs (Fig. B) from

the bottom of the Rear Support Tray (Fig. A).

Cut and remove all mounting clips on the Radio

Housing EXCEPT clips "B" and "K" (Fig.B). Cut

and remove the slots on the bottom of the ISO

Brackets (Fig.C).

Skip to step #3b on Page 10.

95-7801 DASH DISASSEMBLY

HONDA ACCORD 1990-1993

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Remove (4) screws from the lower portion

of the center console. Remove the gear

shifter knob and lift the console out.

Remove the ashtray and ashtray bracket.

Remove (2) screws from the bottom of the

head unit support, slide the unit out and

disconnect the wiring.

(Fig. A)

HONDA ACCORD 1994-1997

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Cut and remove all mounting clips on the

Radio Housing EXCEPT clips "A" and

"H".

(Fig.B)

Skip to step #3b on Page 10.

Cut and remove all mounting clips on the

Radio Housing EXCEPT clips "C" and "H"

(Fig. A). Cut and remove the slots on the

bottom of the ISO Brackets (Fig. B). (THE

REAR SUPPORT TRAY WILL NOT BE

USED).

(Fig. B)

Skip to step #3b on Page 10.

Remove the ashtray and (1) 3/4" #8 Phillips

screw exposed. Open the storage compart-

ment and remove (2) #8 Phillips screws

exposed. Remove the cupholder tray and

(3) #8 Phillips screws inside.Lift the cen-

ter console out and remove (2) Phillips

screws exposed at the base of the dash

trim bezel. Unclip the bezel and remove.

Remove (2) hex-head screws securing the

factoryhead unit and disconnect the

wiring.

(Fig.A)

"C"

Fig. A

Fig. B

"H"

"A"

"H"

95-7801 DASH DISASSEMBLY

HONDA ACCORD 1998-2002

HONDACIVIC 1999-2000

Disconnect the negative battery terminal to pre-

vent an accidental short circuit.

Disconnect the negative battery terminal to pre-

vent an accidental short circuit.

Cut and remove all mounting clips on the Radio

Housing EXCEPT clips "B" and "H".

(Fig.B)

Skip to step #3a on Page 9.

Cut and remove the mounting tabs from the bot-

tom of the Rear Support Tray (Fig. A). Cut and

remove the slots on the bottom of the ISO

Brackets (Fig. B). Locate tabs "A" on the ISO

Brackets for mounting, cut and remove tabs

"B"(Fig. C). Cut and remove all mounting clips

on the Radio Housing.

(Fig. B)

Skip to step #3b on Page 10.

Remove (2) Phillips screws from the bottom

edge of the glove box door and remove the door.

Remove (3) Phillips screws from the lower steer-

ing column panel. Pull straight down on the

lower steering column panel and remove the

panel. Remove (2) Phillips screws under the cli-

mate controls. Remove (4) Phillips screws from

the lower dash location. Remove (4) Phillips

screws securing the bottom of the dash trim

bezel/head unit assembly and pull the assembly

out as far as possible. Cut the zip ties securing

the head unit and climate control wires, slide

dash trim bezel/head unit assembly from the the

dash cavity and disconnect the wiring.

(Fig. A)

Unsnap the clock panel, disconnect the wiring

and remove. Remove (1) Phillips screw exposed

in the clock cavity. Remove (2) Phillips screws

belowthe factory head unit. Unclip the radio

trim bezel and disconnect the wiring.Remove

(4) Phillips screws securing the factory head

unit assembly and disconnect the wiring.

Remove (2) screws securing the factory pocket

to the assembly.

(Fig. A)

"A"

Fig. B

Fig. C

Fig. A

"B"

"H"

95-7801 DASH DISASSEMBLY

HONDACRV1997-2001

Disconnect the negative battery terminal to pre-

vent an accidental short circuit.

Cut and remove all mounting clips on the Radio

Housing EXCEPT clips "B" and "H" (Fig. A). Cut

and remove the slots on the bottom of the ISO

Brackets (Fig. B). Skip to step #3a on Page 9.

Open the glove box, squeeze the retaining clips

and remove the stoppers. Lower the glove box

and remove (2) Phillips screws from the left

edge. Remove (2) Phillips screws from the lower

steering column panel and remove. Unclip the

lower console cover (below the ashtray and

pocket) and remove. Remove (2) Phillips screws

from the base of the center console, open the

console pocket and remove the (4) outer screws

exposed. Unclip the center console and remove.

Remove (2) Phillips screws securing the radio

trim bezel, disconnect the wiring, and remove

the trim bezel/head unit assembly. Remove (4)

Phillips screws securing the head unit to the

bezel and remove.

(Fig. A)

HONDACRV2002-2006

Disconnect the negative battery terminal to pre-

vent an accidental short circuit.

Remove (2) Phillips from the bottom edge of the

radio trim bezel. Unclip the trim bezel and

remove.Remove (4) Phillips screws securing

the factoryhead unit and disconnect the wiring.

(Fig. A)

Cut and remove all mounting clips on the Radio

Housing EXCEPT clips "C" and "H".

(Fig.B)

Skip to step #3a on Page 9.

"B"

"H"

Fig. B

Fig. A

"C"

"H"

95-7801 DASH DISASSEMBLY

HONDAODYSSEY 1995-1998

ISUZU OASIS 1996-1999

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Cut and remove all mounting clips on the

Radio Housing EXCEPT clips "D" and "H"

(Fig. A). Cut and remove the slots on the

bottom of the ISO Brackets (Fig. B). (THE

REAR SUPPORTTRAYWILL NOT BE

USED).

(Fig. B)

Skip to step #3b on Page

10.

Lower the glove box assembly. Remove (2)

Phillips screws exposed on the right side of

the underdash. Remove (2) Phillips screws

from the driver's side knee bolster and (1)

Phillips screw in the coin pocket. Remove

(5) Phillips screws from the underdash

panel and remove the panel. Remove (4)

Phillips screws from the cupholder assem-

bly and remove. Remove (2) Phillips screws

securing the factory head unit and discon-

nect the wiring.

(Fig. A)

HONDA ODYSSEY 1999-2004

Disconnect the negative batteryterminal

to prevent an accidental short circuit.

Unclip the radio trim bezel (including the

climate control panel) and remove).

Remove (4) Phillips screws securing the

factory head unit and disconnect the

wiring.

(Fig. A)

Cut and remove the mounting tabs from

the bottom of the Rear Support Tray (Fig.

A). Cut and remove the slots on the bottom

of the ISO Brackets (Fig.B). Locate tabs

"B" on the ISO Brackets for mounting, cut

and remove tabs "A" (Fig. C). Cut and

remove all mounting clips on the Radio

Housing.

(Fig. B)

Skip to step #3b on Page 10.

"D"

Fig. B

Fig. A

"H"

"B"

Fig. B

Fig. C

Fig. A

95-7801 DASH DISASSEMBLY

HONDAPRELUDE 1992-1996

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Remove (2) screws from the top of the con-

sole trim bezel. Slide the front seats back

and remove (4) Phillips screws from each

side of the bezel. Pull up on the console

trim bezel and remove. Using an angled

screwdriver, remove (2) screws securing

the gear shifter bracket to the bezel.

Remove (4) screws from the radio trim

bezel, remove the factory head unit assem-

bly and disconnect the wiring.

(Fig. A)

HONDAPRELUDE 1997-2001

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Using a panel removal tool, unclip the radio

trim bezel and remove (some force may be

required). Remove (4) Phillips screws

securing the factoryhead unit/bracket

housing assembly and disconnect the

wiring.Remove (4) Phillips screws secur-

ing the factory head unit to the bracket

housing and remove.

(Fig. A)

"F"

Fig. B

Fig. C

"H"

"A"

"G"

Cut and remove all mounting clips on the

Radio Housing EXCEPT clips "A" and

"G".

(Fig.B)

Skip to step #3a on Page 9.

Cut and remove the mounting tabs from

the bottom of the Rear Support Tray (Fig.

B). Cut and remove all mounting clips on

the Radio Housing EXCEPT clips “F” and

"H" (Fig. B). Cut and remove the slots on

the bottom of the ISO Brackets (Fig. C).

Skip to step #3b on Page 10.

Inhaltsverzeichnis

Andere Metra Electronics Autozubehör Handbücher

Metra Electronics

Metra Electronics XSVI-2003-NAV Bedienungsanleitung

Metra Electronics

Metra Electronics MAZDA 6 2009 99-7511S Bedienungsanleitung

Metra Electronics

Metra Electronics 70-7003 Service-Handbuch

Metra Electronics

Metra Electronics 95-7350B Bedienungsanleitung

Metra Electronics

Metra Electronics 95-6545B Bedienungsanleitung

Metra Electronics

Metra Electronics TE-RVMCBT Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7617HG Bedienungsanleitung

Metra Electronics

Metra Electronics 99-6502 Bedienungsanleitung

Metra Electronics

Metra Electronics 108-TO6HG Bedienungsanleitung

Metra Electronics

Metra Electronics 2004-2006 Chrysler Pacifica Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7804 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8152 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-6536 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-9326B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8715 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7378B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8244HG Bedienungsanleitung

Metra Electronics

Metra Electronics GMOS-06 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-1008 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-9107B Bedienungsanleitung

Metra Electronics

Metra Electronics 99-3100 Bedienungsanleitung

Metra Electronics

Metra Electronics 95-7326 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-7013 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-3304 Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
