INSTALLATION INSTRUCTIONS FOR PART 99-9303

Small Flat Blade Screwdriver • Phillips Screwdriver

1-800-221-0932 www.metraonline.com

KIT FEATURES

BMW Z4

2003-2008

•DIN Head Unit Provision

A) Radio Housing

KIT COMPONENTS

TOOLS REQUIRED:

99-9303

TABLE OF CONTENTS

Dash Disassembly: pg. 1

Kit Assembly: pg. 2

Final Assembly: pg. 3

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

•40-EU10 - European antenna adapter

•70-9003 - European harness

APPLICATIONS

99-9303

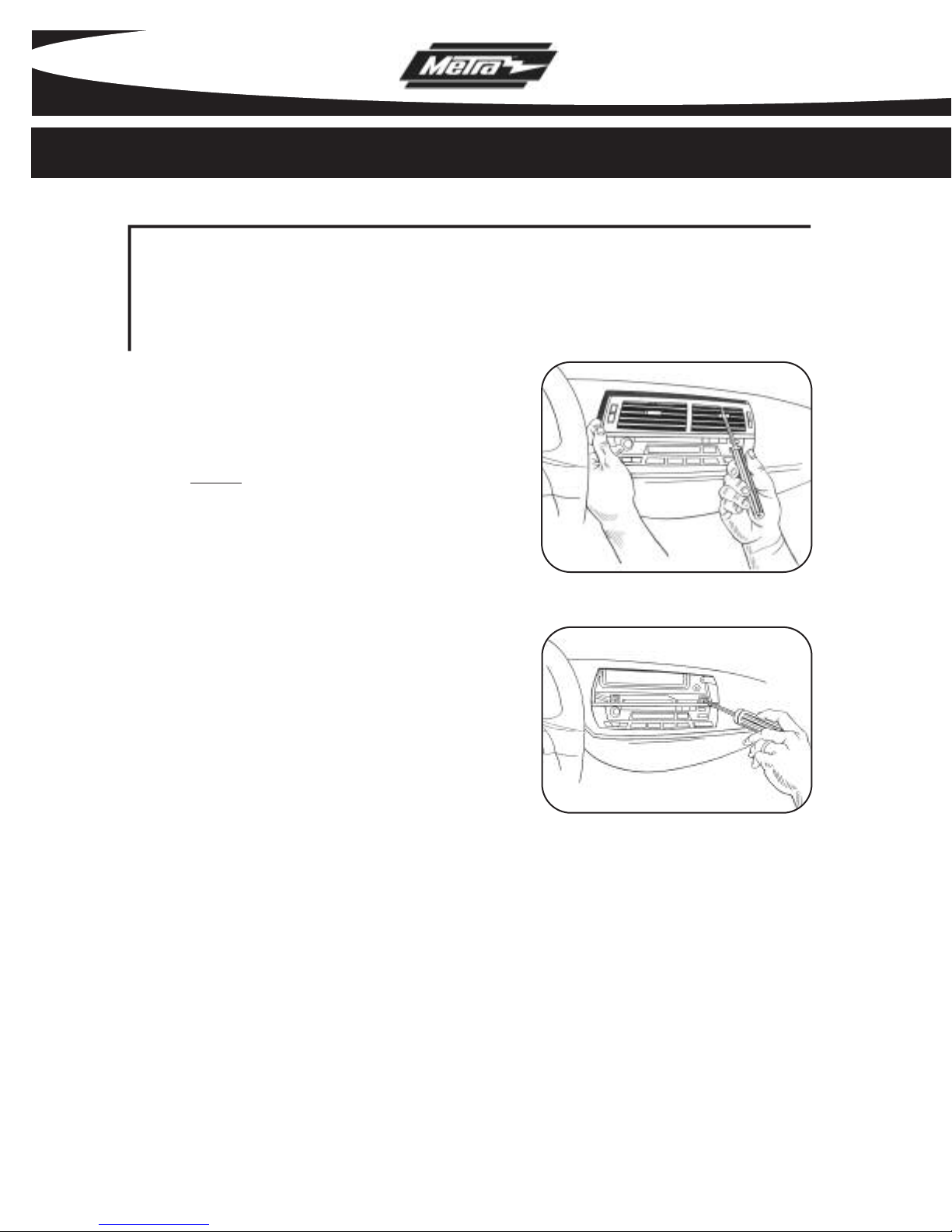

DASH DISASSEMBLY

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

NOTE: Makesure the vent on/off dials

are in the middle position.

Using a small flat blade screwdriver,

release the metal clip located inside

the vents facing upward on the left

and right side while pulling the vents

outwardfrom the dash.

(Figure A)

BMW Z4 2003-2008

Remove (2) Phillips screws exposed

at top of radio and remove.

(Figure B)

99-9303

KIT ASSEMBLY

DIN HEAD UNIT PROVISION

Screw the 99-9303 housing into the

dash opening instead of the factory

radio.

(Figure B)

Slide the DIN cage into the space in

the 99-9303 and secure by bending

the metal locking tabs outward.

(Figure C)

Slide the aftermarket head unit into

the DIN cage until secure.

(Figure D)

NOTE:

The bottom bar connecting the two sides

of the 99-9303 will need to be cut and

removed prior to Kit Assembly.

(Figure A)

99-9303

FINAL ASSEMBLY

Locate the factorywiring harness in the

dash. Metra recommends using the proper

mating adapter and making the connections

as shown. (Isolate and individually tape off

the ends of any unused wires to prevent

electrical short circuit)

Re-connect the negative battery terminal and test

the unit for proper operation.

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Reassemble radio and dash assemblies in

reverse order of disassembly.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.
